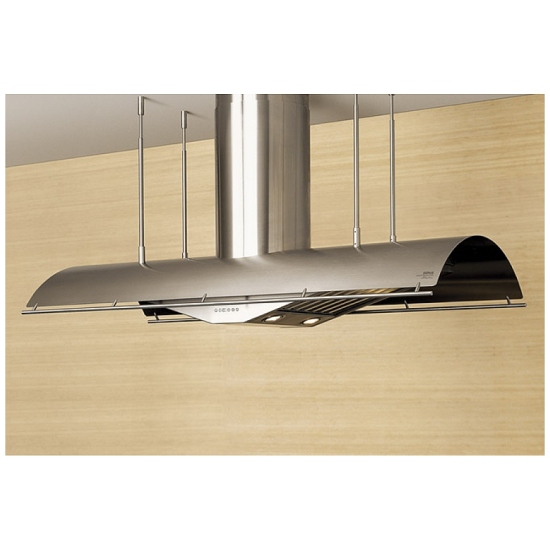

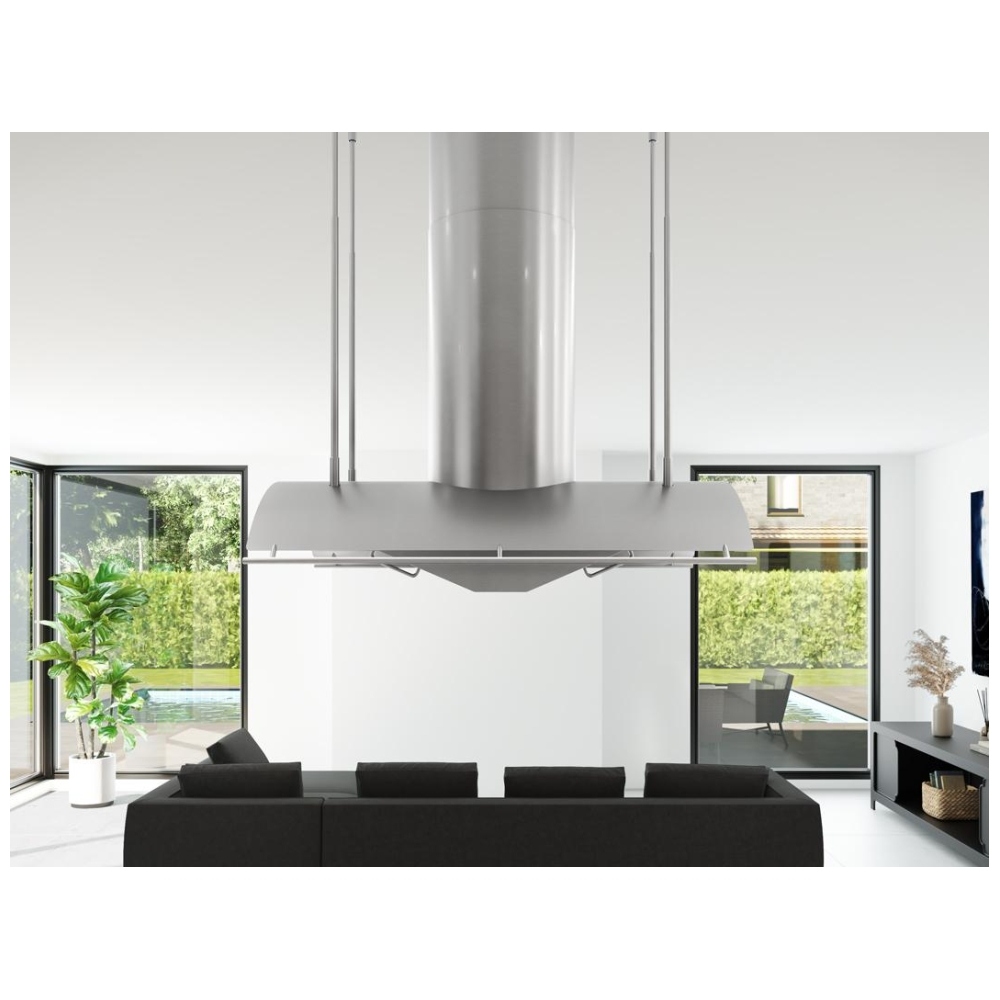

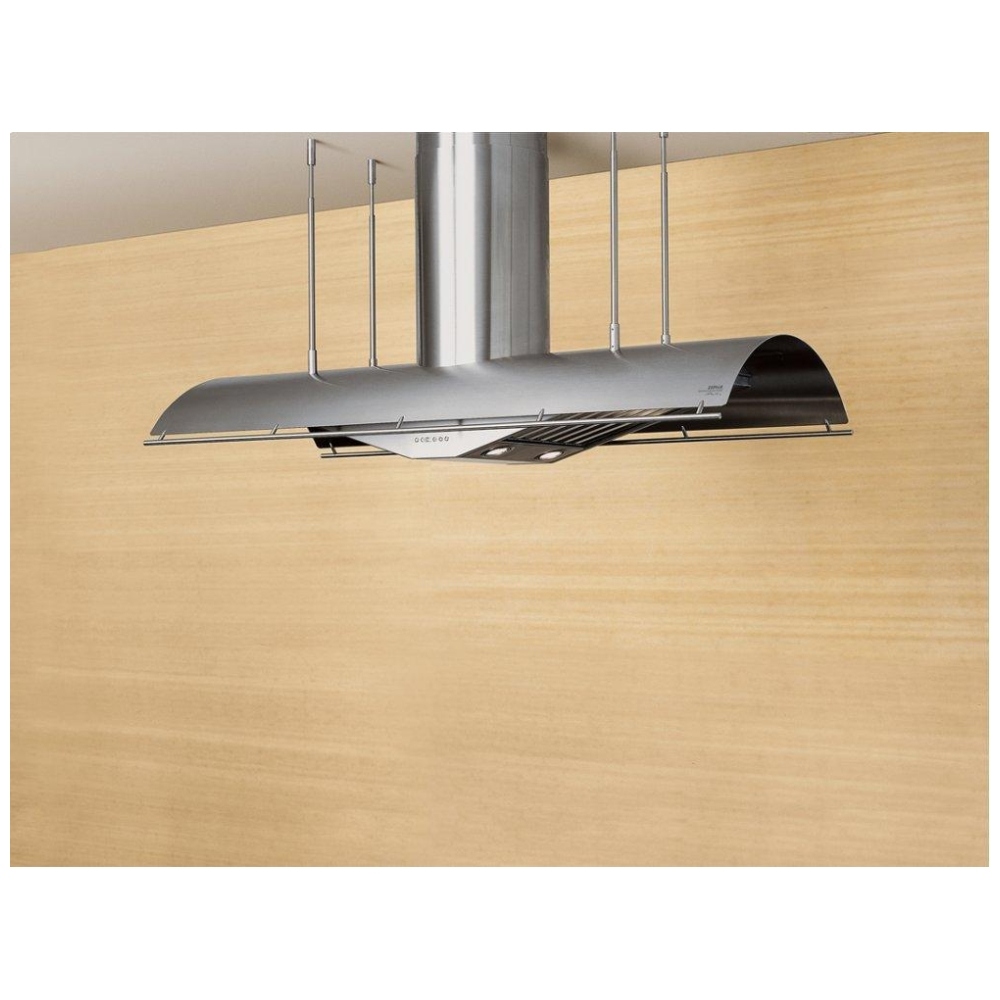

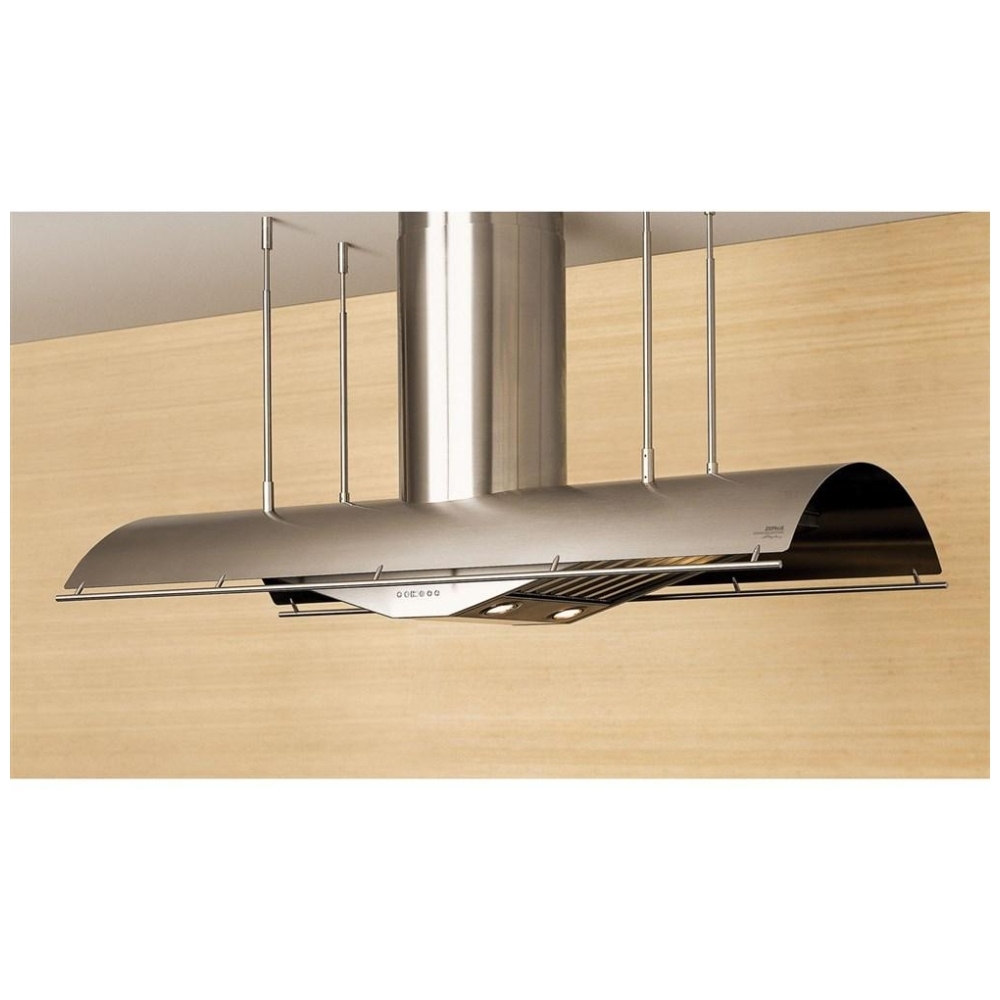

Zephyr CTP-E48BSX
Discontinued
Zephyr Ventilation 2024 Line Up Zephyr Ventilation 2024 Line Up
4HADBV
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to % cash-back when paying by !*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $384.95 for 18 months
Similar Colours and Options
CTP-E48CSX
CTP-E48CSX
$8,004.00 CAD
CTPE48BSX
CTPE48BSX
Dual Level Lighting
$6,929.00 CAD
4HADBV
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to % cash-back when paying by !*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $384.95 for 18 months
Description & Features
Trapeze, Island, 48", SS, BODY ONLY

Manufacturer's Warranty: 1 year

UPC: 646328003523

EAN: 0646328003523

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Island
Vent Type Ducted
UPC 646328003523
GTIN 00646328003523
Country of Origin Taiwan
Model Group CTP-B
Model Name Trapeze Island
Collection Designer Collection
Replacement Model CTP-E48CSX
Blower Included No
Internal Blower 1 CFM 290
Internal Blower 1 Min. Sones 1.4
Internal Blower 1 Max Sones 3
Internal Blower 2 CFM 600
Internal Blower 2 Max Sones 6
In-Line Blower CFM 1000
External Blower CFM 1000
Minimum CFM 240
Installation Type Island
Installation Type Island
For Outdoor Use No
Color Stainless Steel
Controls Type Electronic
Blower Speeds 3
Automatic Delay-Off Yes
Clean Air Function No
Lighting Type LED
Lights Quantity 4
Watts Per Bulb 6
Lights Levels 2
Grease Filter Type Pro baffle
Compatible Mesh or Baffle Filter Part Number 50210022
Duct Discharge Vertical
Duct Size; Horizontal; IN N/A
Duct Size; Vertical; IN 8
Mounting Height Above Cooktop; IN 26 - 36
Voltage 120
Maximum Amperage 6.5
ADA Compliant Yes, with optional remote
Warranty Parts / Labor 3 / 1
Compatible Appliances Z1C-00TP, 14000005, MUA008A, MUA010A
Bluetooth Connected No
Wi-Fi Connected No
Remote Included No
Remote Optional Yes
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Stainless Steel
Wattage 426
Certification UL
Nominal Width; IN 48
Net Width; IN 48
Net Depth; IN 26.625
Net Height; IN 34 - 52
Weight; LBS 84
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 10 ft.
Chimney Height in. 25
Chimney Width in. 12.62
Chimney Depth in. 12.62
Shipping Length; IN 29.53
Shipping Width; IN 51.97
Shipping Height; IN 26.38
Shipping Weight; LBS 116
Shipping Method LTL
Freight Class 250
Certification # E127334
Clean Filter Alert Yes
Duct Type Vertical
Duct Type Vertical
CTP-E48BSX
48" Trapeze Island
290, 600, 1000 CFM
Not Recirculating
Pro Baffle Filter
Stainless Steel
Vertical Ducting
