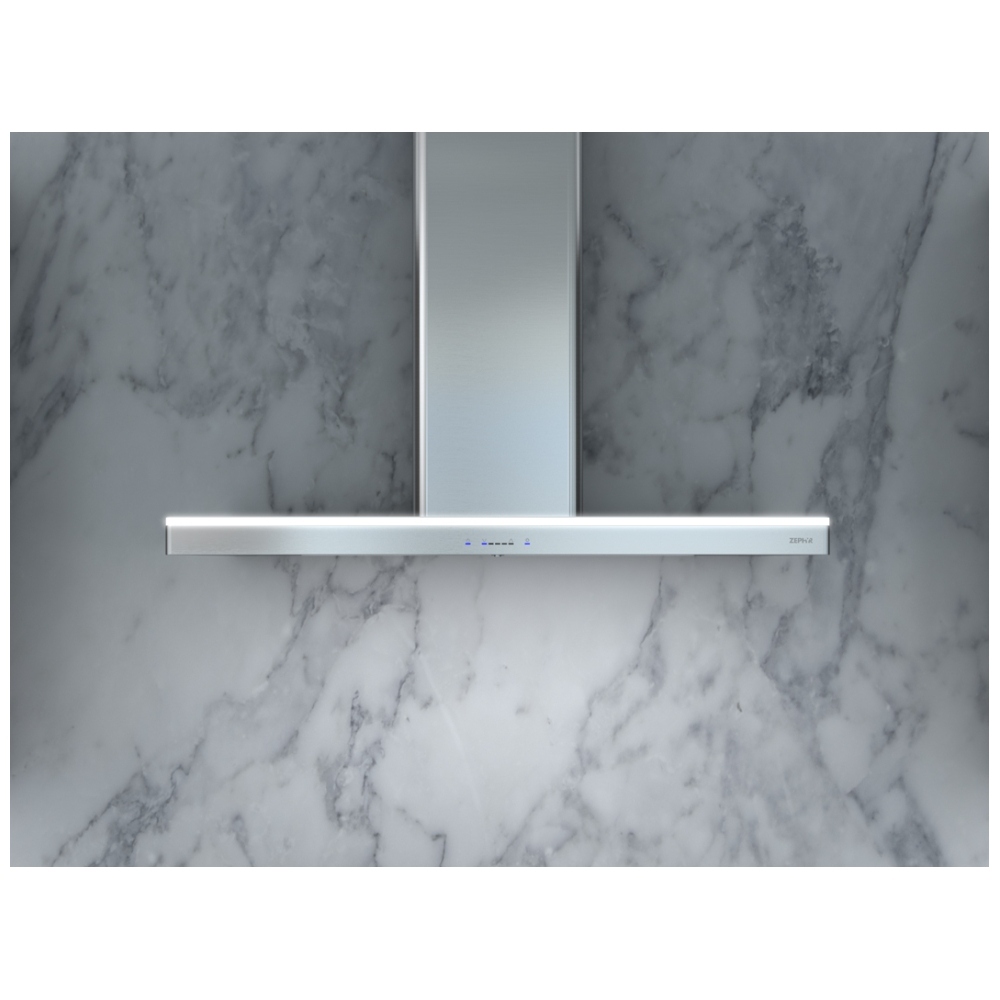

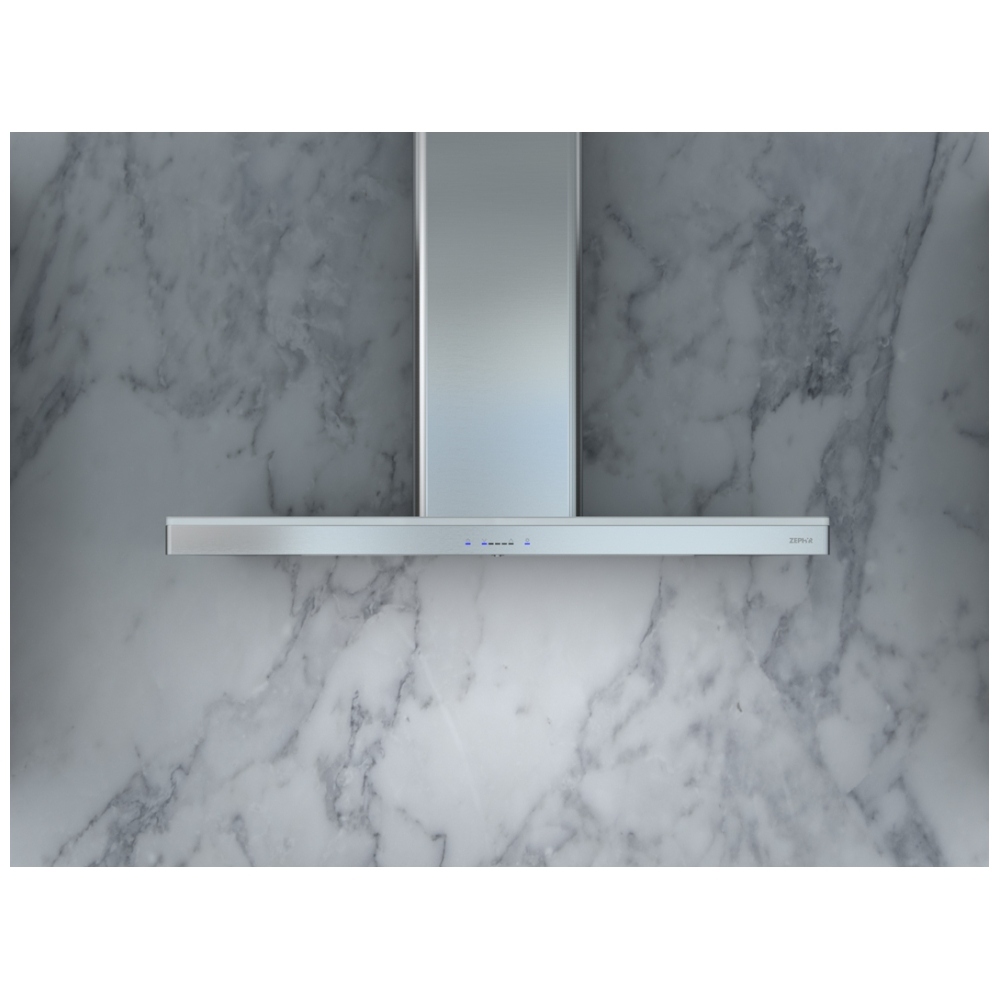

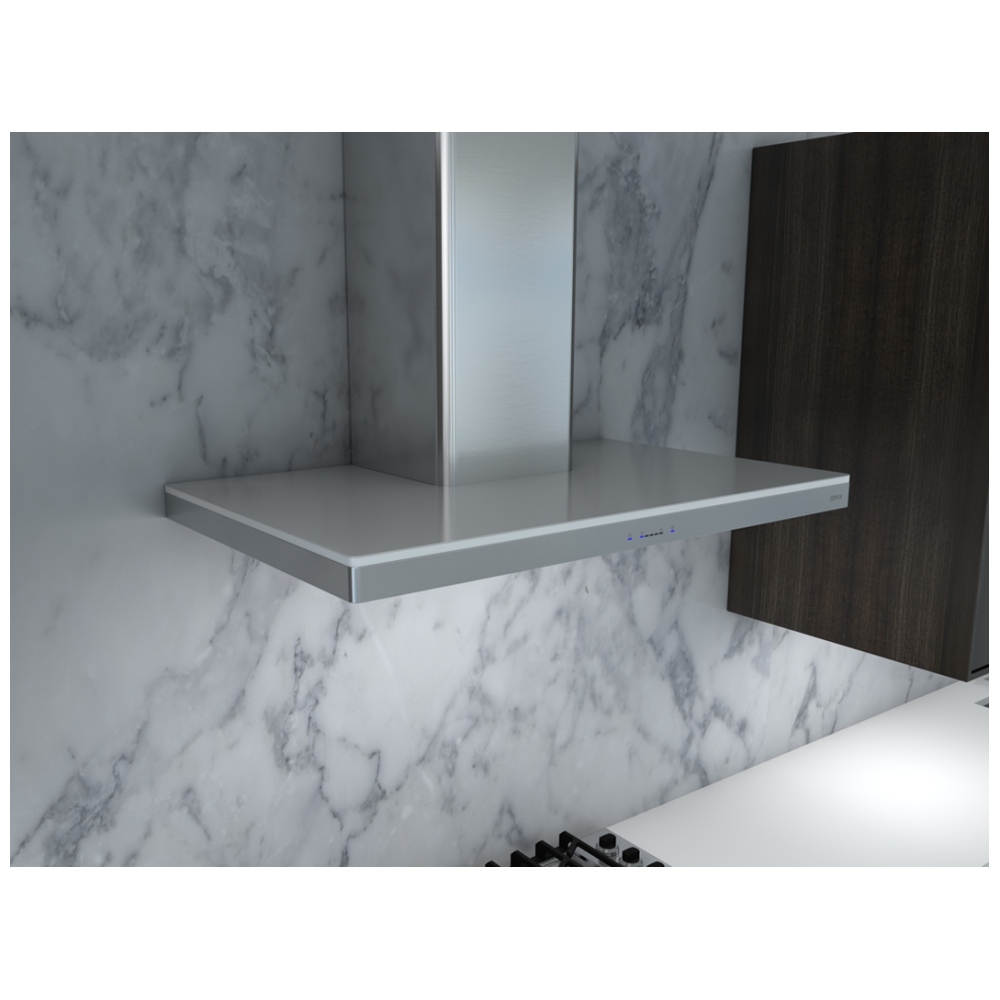

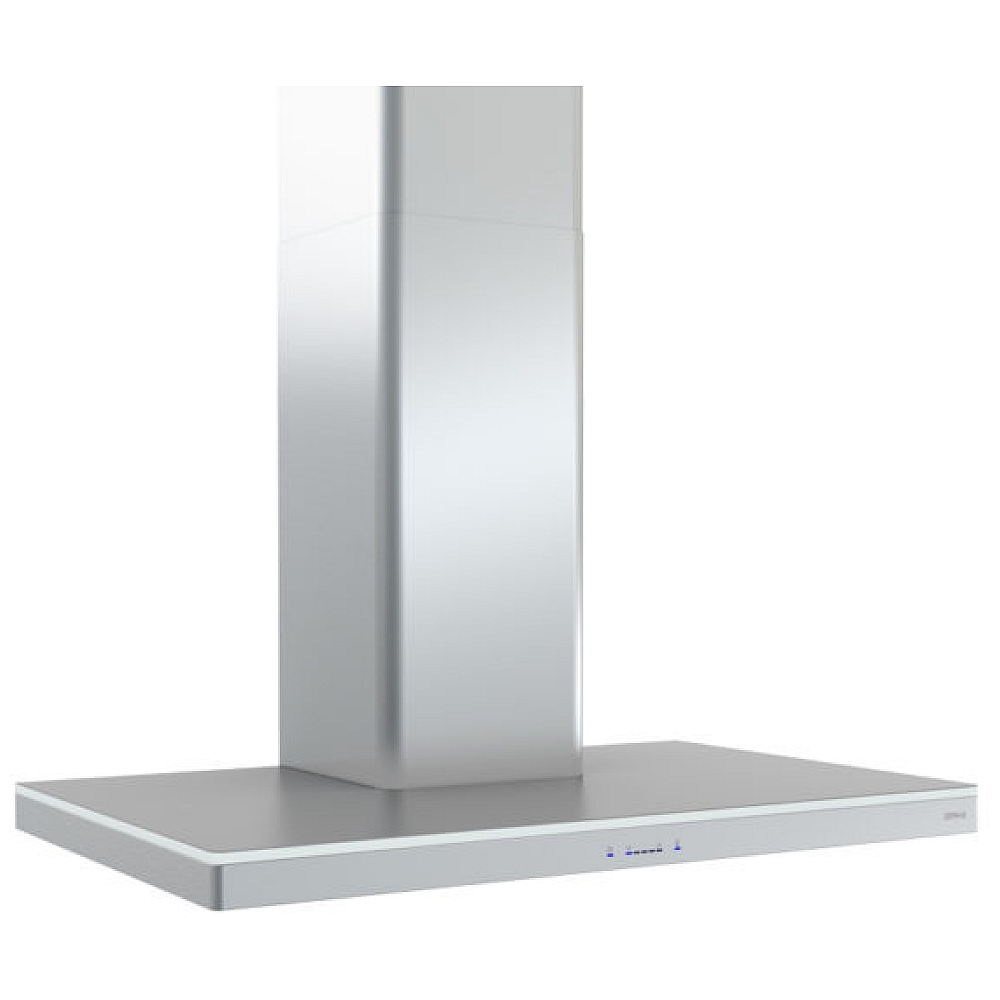

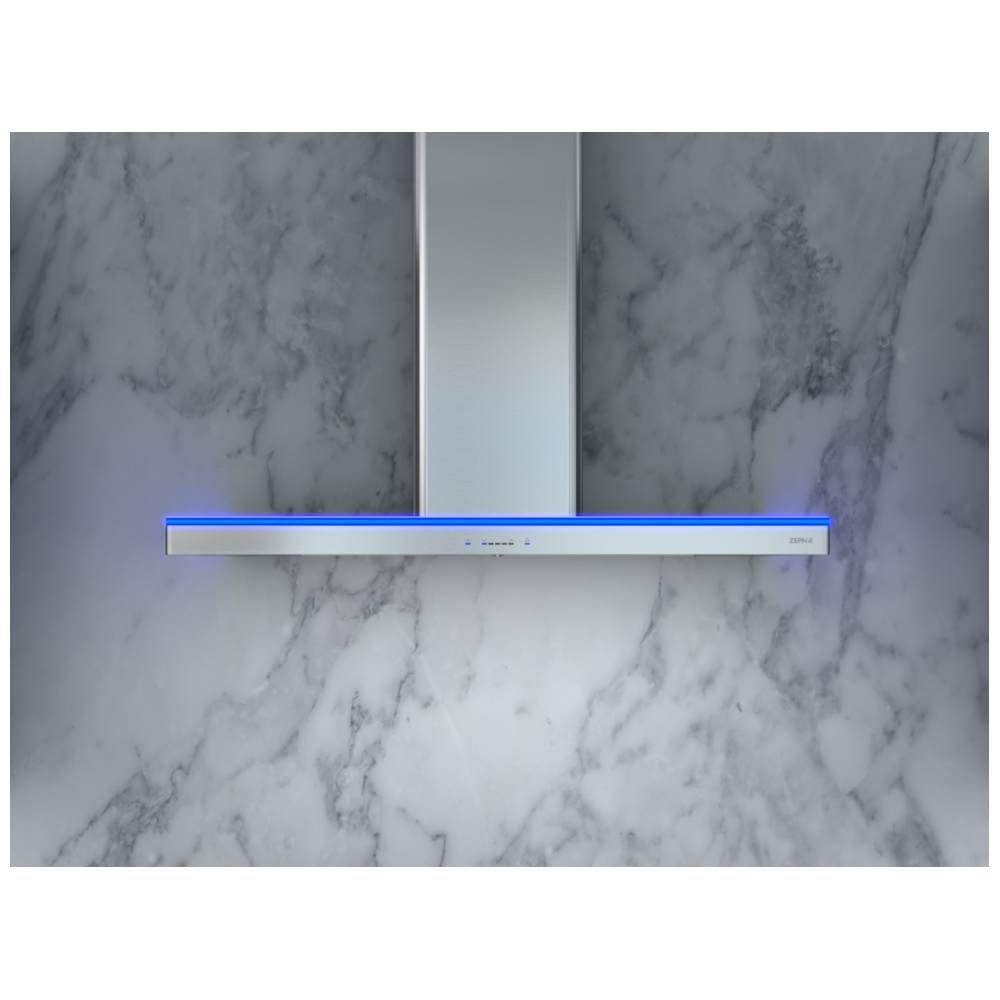

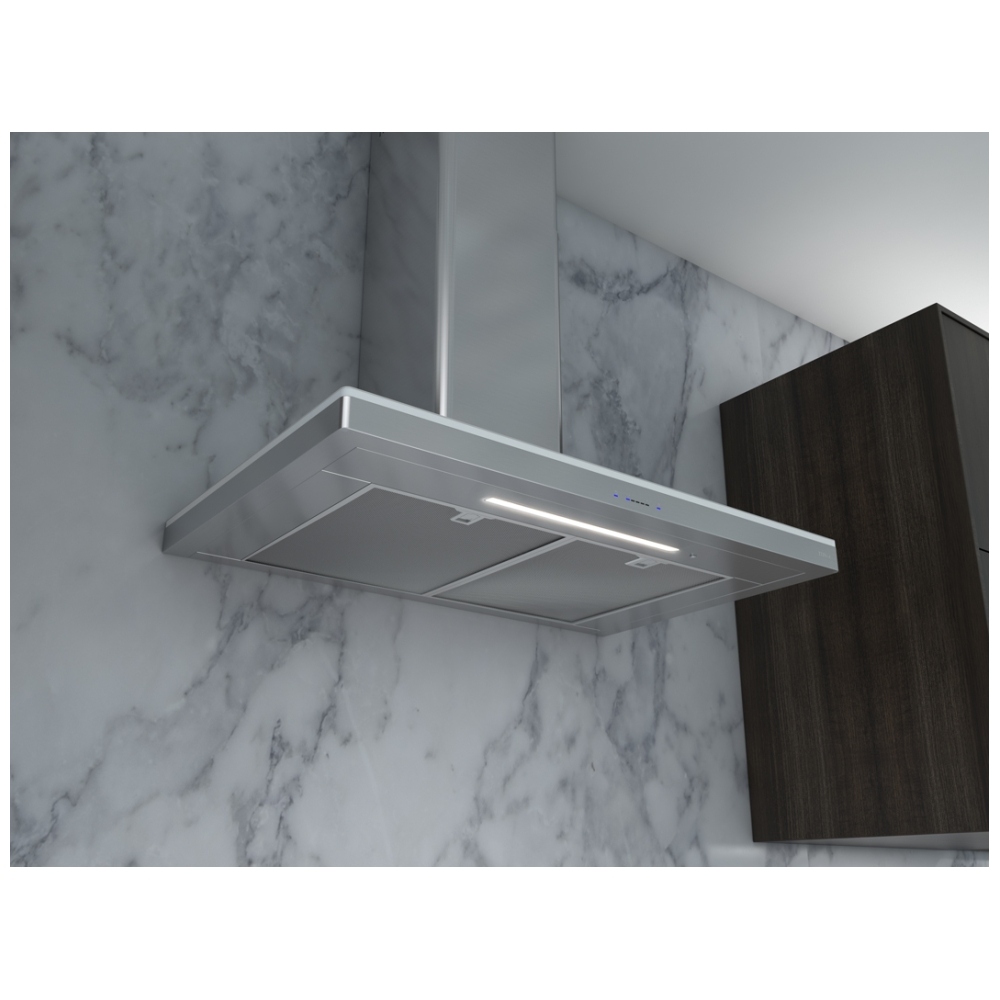

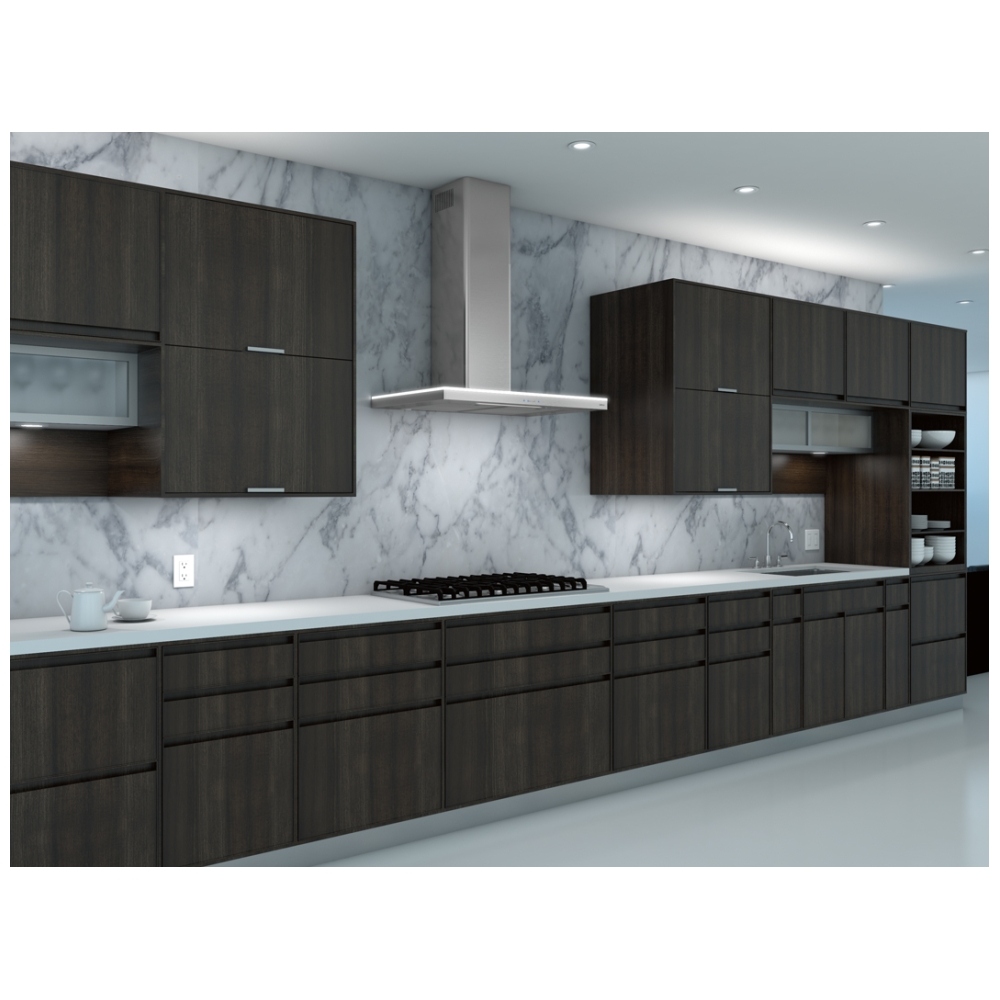

Zephyr ZLU-M90BS
Discontinued
Step down to Zephyr BMI-E36DG and save $1,439
AQJJH4
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $141.00 for 18 months
Ratings & Reviews
Similar Colours and Options
ZLC-M90BS
ZLC-M90BS
Stainless Steel
ZLU-M90CS
ZLU-M90CS
Stainless Steel
ZLUM90BS
ZLUM90BS
Stainless Steel
AQJJH4
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $141.00 for 18 months
Description & Features
Luce, Wall, 90cm, SS, 600 CFM, ACT, LED

Manufacturer's Warranty: 1 year

Canadian model: ZLU-M90BS

Canadian UPC: 646328005589

EAN: 0646328005589

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Wall
Vent Type Convertible
UPC 646328005589
GTIN 00646328005589
Country of Origin Taiwan
Model Group ZLU-B
Model Name Lucé Wall
Collection Core Collection
Replacement Model ZLU-M90CS
Blower Included Yes
Blower CFM w/ACT 390, 290
Internal Blower 1 CFM 600
Internal Blower 1 Min. Sones 1
Internal Blower 1 Max Sones 6
Minimum CFM 200
Installation Type Wall
Installation Type Wall
For Outdoor Use No
Color Stainless Steel
Controls Type ICON Touch®
Blower Speeds 5
Automatic Delay-Off Yes
Clean Air Function No
Lighting Type LED
Lights Quantity 1
Watts Per Bulb 9
Lights Levels 2
Grease Filter Type Mesh
Compatible Mesh or Baffle Filter Part Number 50200053
Duct Discharge Vertical
Duct Size; Horizontal; IN N/A
Duct Size; Vertical; IN 6
Mounting Height Above Cooktop; IN 26 - 34
Voltage 120
Maximum Amperage 3
ADA Compliant No
Warranty Parts / Labor 3 / 1
Compatible Appliances ZRC-00LU, Z1C-00LU, MUA006A, Z0F-C092
Bluetooth Connected No
Wi-Fi Connected No
Remote Included No
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Stainless Steel
Wattage 480
Certification UL
Nominal Width; IN 36
Net Width; IN 35.4375
Net Depth; IN 22
Net Height; IN 26.5 - 50
Weight; LBS 54.2
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 10 ft.
Chimney Height in. 24.5
Chimney Width in. 10.37
Chimney Depth in. 10.56
Shipping Length; IN 39.68
Shipping Width; IN 19.69
Shipping Height; IN 27.95
Shipping Weight; LBS 69.8
Shipping Method Small Parcel
Freight Class 300
Certification # E127334
Clean Filter Alert Yes
Duct Type Vertical
Duct Type Vertical
ZLU-M90BS
36" Lucé Wall
290, 390, 600 CFM
Recirculating
Mesh Filter
Stainless Steel
Vertical Ducting
Max Sones 6
