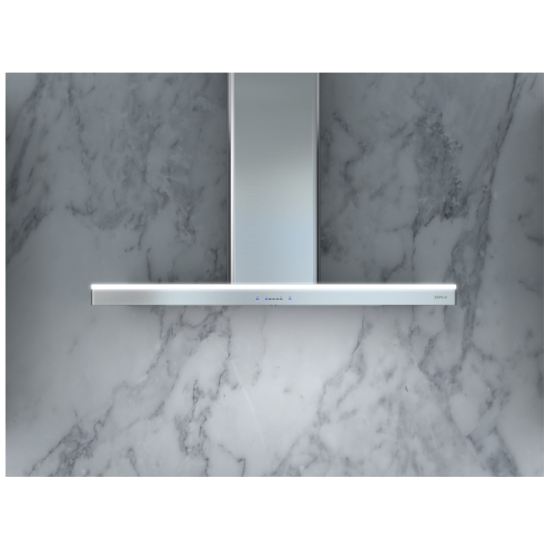

Zephyr ZLUM90BS
Discontinued
AE6EIG
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $113.84 for 18 months
Ratings & Reviews
Similar Colours and Options
ZLCM90BS
ZLCM90BS
Stainless Steel
ZLU-M90BS
ZLU-M90BS
Stainless Steel
AE6EIG
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $113.84 for 18 months
Description & Features
Luce, Wall, 90cm, SS, 600 CFM, ACT, LED
BriteStrip™ LED
  • Perfectly illuminates your cooking surface.
ACT™ Technology
  • Limits the maximum blower CFM to meet local code requirements.
ICON Touch Controls
  • Seamlessly integrate into the hood and allow users to easily control the hood.
3 Color Trim Lighting
  • Cloud White
  • Deep Blue
  • Amber
Additional Features
  • 600 CFM
  • 5 Speeds
  • Dishwasher-Safe Filters
  • Recirculating Option

Manufacturer's Warranty: 1 year

Canadian model: ZLUM90BS

Canadian UPC: 646328005589

EAN: 0646328005589

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Wall
Vent Type Convertible
UPC 646328005589
GTIN 00646328005589
Country of Origin Taiwan
Model Group ZLU-B
Model Name Lucé Wall
Collection Core Collection
Replacement Model ZLU-M90CS
Blower Included Yes
Blower CFM w/ACT 390, 290
Internal Blower 1 CFM 600
Internal Blower 1 Min. Sones 1
Internal Blower 1 Max Sones 6
Minimum CFM 200
Installation Type Wall
Installation Type Wall
For Outdoor Use No
Color Stainless Steel
Controls Type ICON Touch®
Blower Speeds 5
Automatic Delay-Off Yes
Clean Air Function No
Lighting Type LED
Lights Quantity 1
Watts Per Bulb 9
Lights Levels 2
Grease Filter Type Mesh
Compatible Mesh or Baffle Filter Part Number 50200053
Duct Discharge Vertical
Duct Size; Horizontal; IN N/A
Duct Size; Vertical; IN 6
Mounting Height Above Cooktop; IN 26 - 34
Voltage 120
Maximum Amperage 3
ADA Compliant No
Warranty Parts / Labor 3 / 1
Compatible Appliances ZRC-00LU, Z1C-00LU, MUA006A, Z0F-C092
Bluetooth Connected No
Wi-Fi Connected No
Remote Included No
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Stainless Steel
Wattage 480
Certification UL
Nominal Width; IN 36
Net Width; IN 35.4375
Net Depth; IN 22
Net Height; IN 26.5 - 50
Weight; LBS 54.2
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 10 ft.
Chimney Height in. 24.5
Chimney Width in. 10.37
Chimney Depth in. 10.56
Shipping Length; IN 39.68
Shipping Width; IN 19.69
Shipping Height; IN 27.95
Shipping Weight; LBS 69.8
Shipping Method Small Parcel
Freight Class 300
Certification # E127334
Clean Filter Alert Yes
Duct Type Vertical
Duct Type Vertical
Overview
Blower CFM (Min. - Max.):
200 - 600
Sones (Min. - Max.):
1 - 6
ACT 390 CFM (Min. - Max.):
200 - 390
ACT 390 Sones (Min. - Max.):
1 - 4
ACT 290 CFM (Min. - Max.):
200 - 290
ACT 290 Sones (Min. - Max.):
1 - 3
Features
ACT Technology:
Yes
Controls:
ICON Touch
Speed Levels:
5
Auto Delay-Off:
Yes
Lighting:
BriteStrip LED x1
Dual-Level Lighting:
Yes
LED Accent Light:
Yes; Cloud White, Deep Blue & Amber
Filters:
Aluminum Mesh x2
Recirculating Option:
Yes
Extension Duct Cover Option:
Yes, Up to 12' Ceiling
Electrical Specifications
Electrical Requirements:
120V, 60Hz at Max. 3A
Dimensions
Width:
26"
Total Depth:
22"
Duct Size:
6"
Min. Ducted Height:
26 1/2"
Min. Recirculating Height:
31"
Max. Height:
50"
