Worktop
Size:	48 in
Cooking zones:	7
Gas zones:	6
Griddle zones:	electric
Worktop type:	electric gas
Worktop design:	stainless steel squared
Worktop controls:	knobs
Knobs:	soft touch
Burner type:	brass
Grates:	cast iron
Continous grating:	yes
Thermocouple safety device:	yes
One-hand ignition:	yes
Backguard:	yes
Wok adapter:	yes
Simmer ring:	yes
Cooking zones
Dual wok:	750 BTU/h - 18 000.00 BTU/h
Rapid:	2500 BTU/h - 11 000.00 BTU/h (1)
Semi-rapid:	1500 BTU/h - 6500 BTU/h (3)
Auxiliary:	750 BTU/h - 3400 BTU/h (1)
Oven cavity
Oven configuration:	double
Oven fuel:	gas
Oven type:	gas conventional
Main oven type:	fan assisted gas
Main oven broiler type:	gas
Main oven functions:	bottom bake broiler convection broiler defrosting dehydrate gas convection oven light
Main oven volume:	3.60 ft
Auxiliary oven type:	gas conventional
Auxiliary oven functions:	bottom bake oven light
Auxiliary oven volume:	2.20 ft
Oven controls:	knobs thermometer
Inner oven door:	triple
Removable inner glass:	yes
Cooling fan:	yes
Oven levels:	5
Timer:	thermometer
Sliding shelves:	1 standard
Wire-shelves:	2 heavy gauge chromed
Tray:	1 enamelled
Grill trivet for tray:	yes
Oven lights:	double diagonal
Bottom
Storage compartment:	flap
Legs:	stainless steel
Electrical requirements:	120 V - 60 Hz - 10 A

Worktop
Gas Zones:	6
Burners Type:	Brass
Griddle:	Electric
Design Worktop:	Stainless Steel Squared
Worktop Control:	Knobs
Knobs:	Soft Touch
Pan Support:	Cast Iron
Backguard:	Yes
Thermocouple Safety Device:	Yes
One Hand Ignition:	Yes
Work Adapter:	Yes
Simmer Ring:	Yes
Cooking Zones
Dual Wok:	750 - 18,000 BTU/h
Rapid:	11,000 BTU/h
Semi-Rapid:	6,500 BTU/h
Auxiliary:	3,400 BTU/h
Simmer Rate:	750 BTU/h
Griddle:	1,100 Watts, Drip Tray
Oven Cavity
Main Oven:	Gas Convection with Gas Infrared Broiler
Main Oven Volume:	3.6 Cu. Ft.
Auxiliary Oven:	Gas
Auxiliary Oven Volume:	2.2 Cu. Ft.
Temperature Gauge:	Yes
Inner Oven Door:	Full-Width Triple Glass
Cooling Fan:	Yes
Telescopic Glide Shelf:	2
Baking Tray:	1
Heavy Gauge Wire Shelves:	2
Grill Trivet For Tray:	1
Stainless Steel Legs:	Yes
Height-Adjustable Legs:	Yes
Main Oven Functions
Oven Light:	Yes
Upper Bake:	No
Bottom Bake / Gas Bake:	Yes
Bake:	No
Large Broiler:	No
Broiler:	Yes
Turbo / Gas Convection:	Yes
Convection Bake:	No
Convection Broiler:	Yes
Convection:	No
Defrost / Dehydrate:	Yes
Warming / Sabbath Mode:	No
Proofing:	No
Self-Clean:	No
Microwave:	No
Convection / Microwave:	No
Broiler / Microwave:	No
Auxiliary Oven Functions
Oven Light:	Yes
Bottom Bake / Gas Bake:	Yes
Electrical Requirements
Voltage:	120 V
Frequency:	60 Hz
Max Amp Usage:	10 Amps - 1,200 Watts
Certifications and Warranty
Certification:	CSA
Warranty:	2 Years Parts and Labor
Dimensions
Overall Width:	48"
Overall Depth:	25 1/8"
Overall Depth Of Side Panel:	24"
Overall Height:	35 1/2" - 37 1/4"

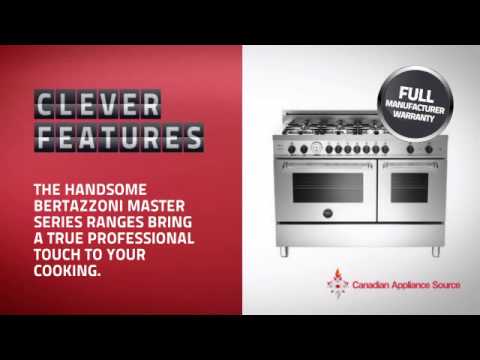

Bertazzoni MAS486GGASXT

Bertazzoni MAS486GGASXT Gas Range, 5.8 cu. ft. Capacity, 48 inch Exterior Width, Manual Clean, Convection, 6 Burners, Storage Drawer, Double Oven, Natural Gas Unit colour
