Description & Features

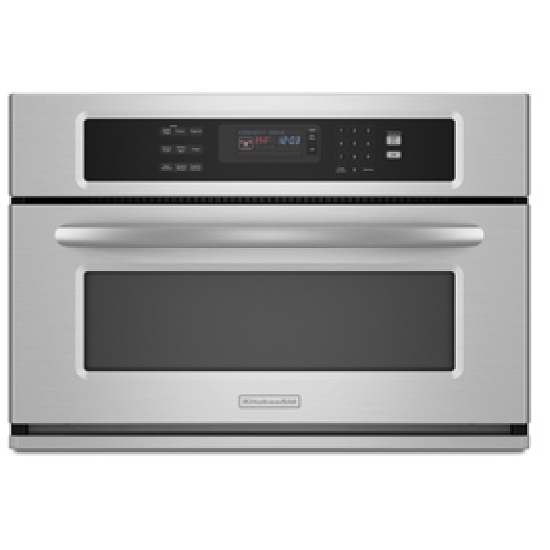

KitchenAid KBHS109SSS Built In Microwave, 1.4 cu. ft. Capacity, 900W Watts, Convection, Stainless Steel Interior, Stainless Steel colour
Kitchen Aid KBHS109SSS Built In Microwave Oven, 30in, 1.4 cu.ft, with EasyConvect Time and Temperature Conversion System, Optimawave Technology, Custom defrost and reheat cycles and Sensor steam cook
With convection cooking capabilities, this microwave oven offers more cooking options, better results, and less cook time than conventional microwaves. Features such as the EasyConvect™ Time and Temperature Conversion System and a glass-touch oven display make this oven easy to use and clean.

  • Microwave convection cooking provides more even results in less time and provides a second oven option
  • EasyConvect Time and Temperature Conversion System takes the guesswork out of convection cooking
  • OptimaWave Technology with True 10-Level Power Control
  • Custom reheat and custom defrost functions
  • 27 in. and 30 in. beveled trim kits help achieve a coordinated look
  • Soften and melt cycles
  • CrispWave Technology provides grilling, frying, and convection cooking options
  • Sensor steam cook cycle provides precise steaming for a variety of food types
  • Auto Cook, Auto Reheat, and Auto Defrost Functions
  • Architect« Series II styling with new integrated cast metal badge
  • Add-a-minute control adds time in one-minute increments
  • Popcorn sensor prevents microwave popcorn from burning
  • Keep warm option
  • Deep drawn doors provide a sleek, uninterrupted exterior
  • Responsive glass-touch oven display with lockout

Manufacturer's Warranty: 1 year


Electrical Requirements
Amperage 20 Amps.
Frequency 60 Hz.
Voltage 208/240 V.
Circuit Amps @ 240VAC 30 Amps.
Fuel Type Electric
Product Depth 26 1/8 Inches
Product Height 20 1/2 Inches
Product Width 29 3/4 Inches
Cutout Depth 23 Inches
Cutout Height 19 7/16 Inches
Cutout Width 28 1/2 Inches
Shipping Weight 145 LB

Microwave Features
Cooking Power Wattage 900
Convection Element Wattage 1600
Grill Power Wattage 1600
Dinner Plate Reheat Yes
Steam/Simmer (Sensor) Yes
Add A Minute Add-A-Minute Control
Control Lock Out Feature Yes
Power Levels Ten
Convection Rack Yes
Stoppable Turntable Yes
Handle Material Extruded Aluminum
Capacity 1.4 Cu. Ft.
Product Height 52.07 CM
Product Width 75.565 CM
Product Depth 66.3575 CM
