MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).

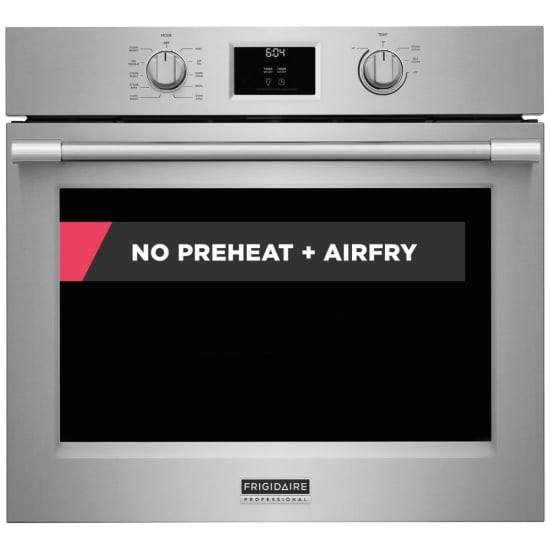

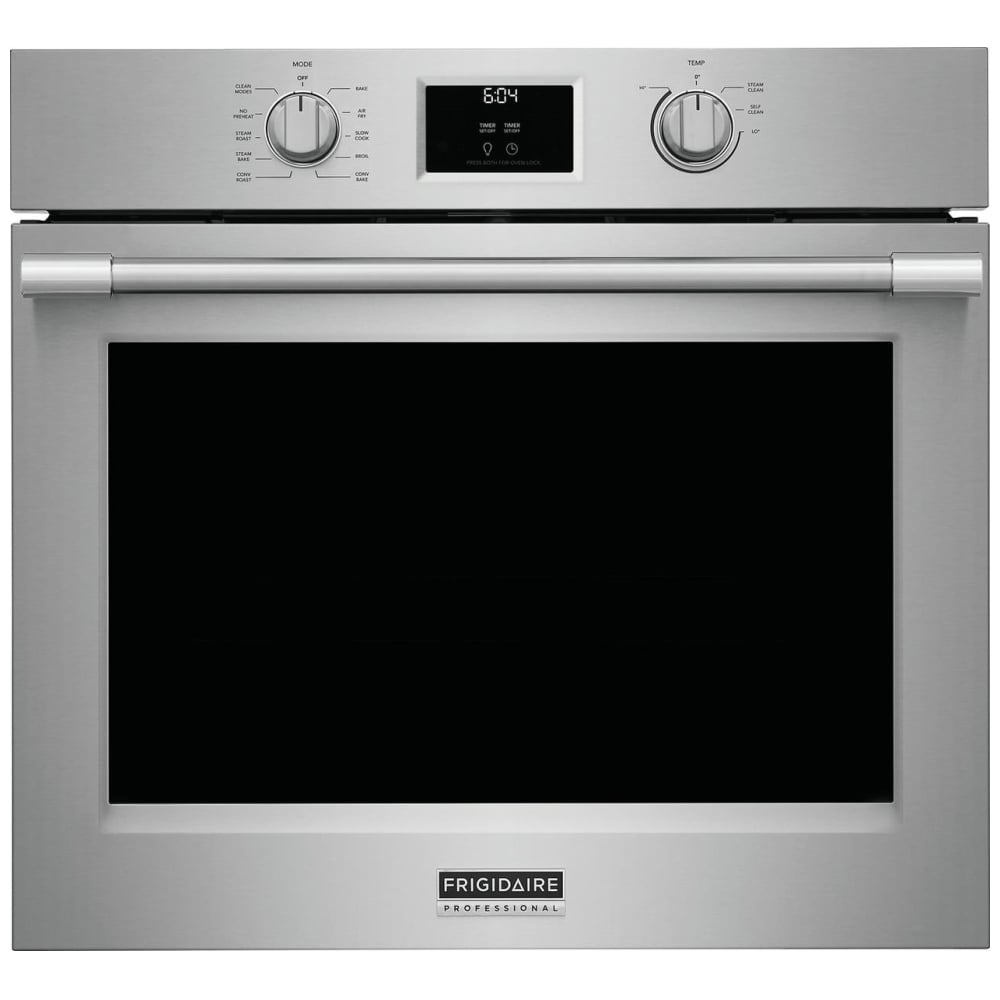

Make healthier and delicious meals with the Air Fry feature in the Frigidaire PCWS3080AF Single Wall Oven. With Air Fry, you can enjoy all the taste and crunch of your favorite foods, without the added oil and fat.
Faster, more even baking results with Total Convection
Get faster, more even multi-rack baking with the Total Convection system, which utilizes a powerful fan and third heating element to evenly circulate hot air throughout the oven. This results in perfectly baked goods, every time.
Temperature Probe for perfect results every time
The Frigidaire PCWS3080AF Single Wall Oven includes a temperature probe, which allows you to monitor the internal temperature of your food while it's cooking. Simply insert the probe into your dish, set the desired temperature, and the oven will automatically adjust the cooking time to ensure perfect results every time.
Easy clean-up with Self Clean
When mealtime is over, simply activate the Self Clean feature and let the oven do the work. With Frigidaire's Self Clean technology, you can enjoy a spotless oven without having to spend hours scrubbing.
Upgrade your kitchen with the Frigidaire PCWS3080AF Single Wall Oven and experience the power and convenience of Total Convection, Air Fry, Temperature Probe and Self Clean. Find a retailer today!
- Total Convection gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast and more!
- Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. * No Preheat is best used for single-rack baking of frozen or pre-made items and food that needs to cook for longer than 10 minutes.
- Air Fry allows you to make healthier and delicious meals for the entire family, right in your oven.

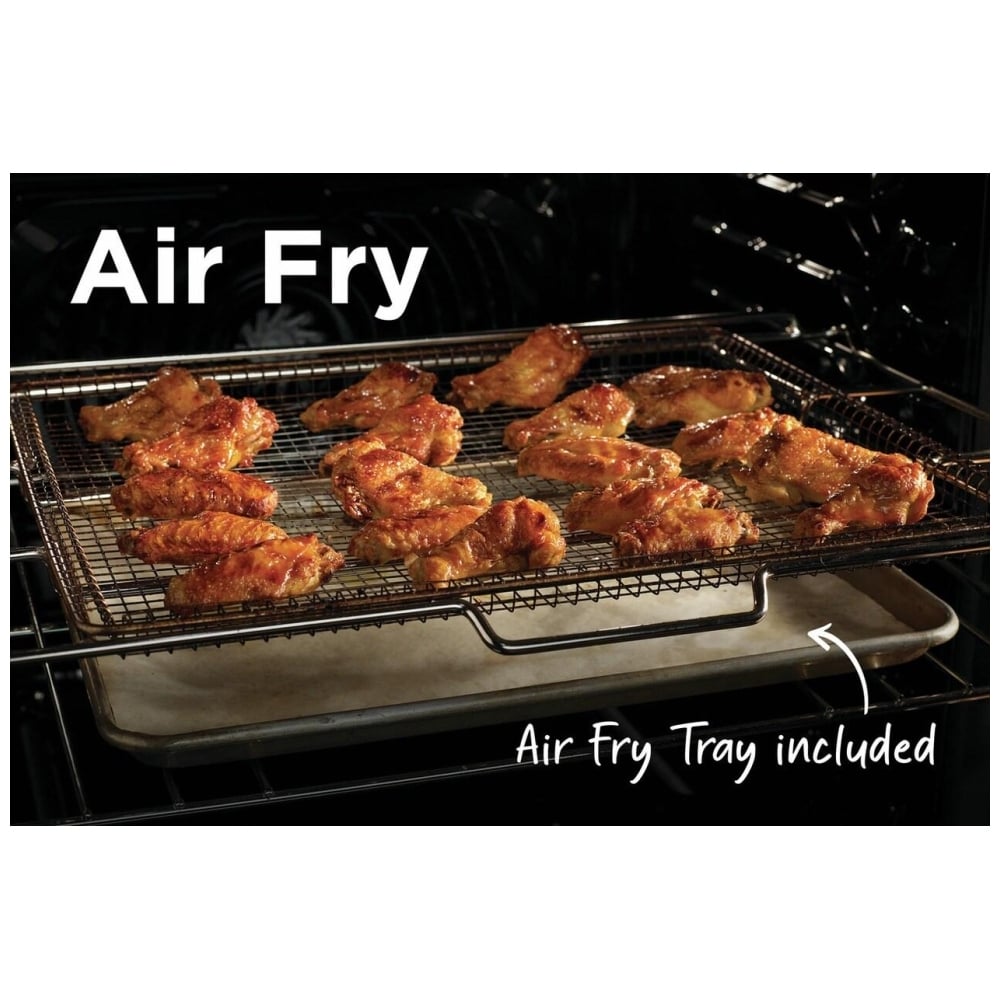

- For perfectly crispy and delicious Air Fry results. * ReadyCook™ Air Fry Tray is not required to use Air Fry.
- With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
- With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
- The Temperature Probe monitors and alerts when the desired finished cooking temperature has been reached.
- We promise that your new 30" Frigidaire® Professional single wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.
- Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
- Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.

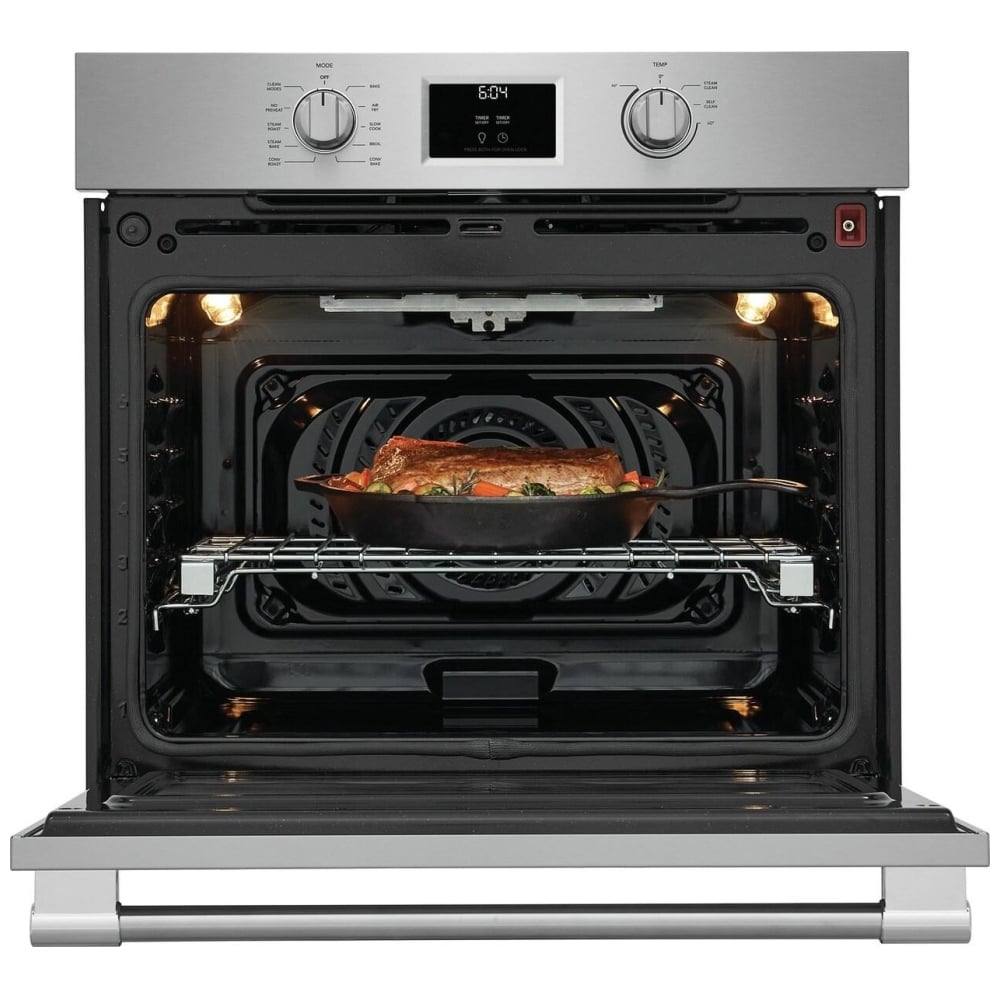

- Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.
- Cook more at once with our extra large, 5.3 cu.ft. capacity oven.
- Resists fingerprints and cleans easily.
Manufacturer's Warranty: 1 year
UPC: 012505515378
EAN: 0012505515378
Product Line | Single Wall Oven |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Built-In |
Factory | Springfield |
Color | Stainless Steel |
Installation | |
Power Supply Connection Location | Top Left |
Electrical Specifications | |
Amps @ 240 Volts | 20 Amps |
Connected Load @ 240V | 4.5 kW |
Minimum Circuit Required | 20 Amps |
Voltage Rating | 240 V |
Certifications and Approvals | |
ADA Compliant | Yes |
Star-K Certification | Yes |
Cooking Controls | |
Air Fry | Yes |
Bake | Yes |
Broil | Yes |
Cancel | Yes |
Child Lock | Yes |
Clear Off | Yes |
Clock | Yes |
Convection Bake | Yes |
Convection Roast | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Fast Preheat | Yes |
Kitchen Timer | Yes |
Light | Yes |
Off | Yes |
Oven Light | Yes |
Probe | Yes |
Self Clean | Yes |
Set Clock | Yes |
Slow Cook | Yes |
Start | Yes |
Steam Bake | Yes |
Steam Clean | Yes |
Steam Roast | Yes |
Stop | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
User Preferences | Yes |
Oven | |
Bake Element | 2,500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 4,000 Watts |
Broil Element Pass | 6 |
Broil System | Yes |
Cleaning System | Yes |
Convection | Yes |
Convection Element | 3,800 Watts |
Convection Type | Total |
Number of Convection Fans | 1 |

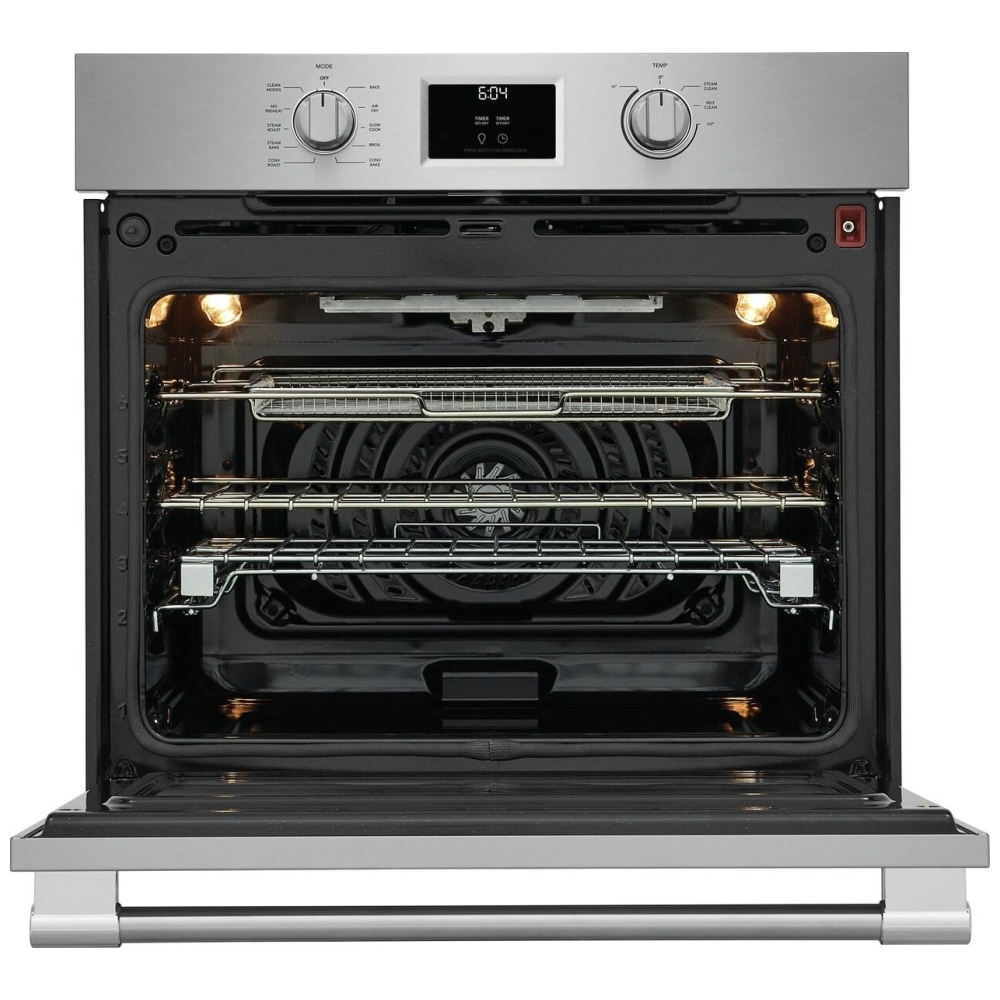

Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 2 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Handle |
Rack Type 1 Quantity | 1 |
Rack Type 2 | Glide |
Rack Type 2 Quantity | 1 |
Rack Type 3 | Air Fry Tray |
Rack Type 3 Quantity | 1 |
Dimensions and Volume | |
Height | 28" |
Width | 29 7/8" |
Depth | 25 3/16" |
Depth With Door 90° Open | 48 3/16" |
Depth With Handle | 27 3/5" |
Oven Interior Height | 18 1/8" |
Oven Interior Width | 25 1/5" |
Oven Interior Depth | 19 7/8" |
Minimum Cutout Height | 26 3/4" |
Minimum Cutout Width | 28 1/2" |
Maximum Cutout Height | 28" |
Maximum Cutout Width | 29" |
Oven Capacity | 5.3 Cu. Ft. |
Safety Certifications and Approvals | |
CSA Listed | Yes |
UL Listed | Yes |
RoHS | Yes |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 163 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Exterior | |
Exterior Finish | Smudge-Proof® Stainless Steel |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |

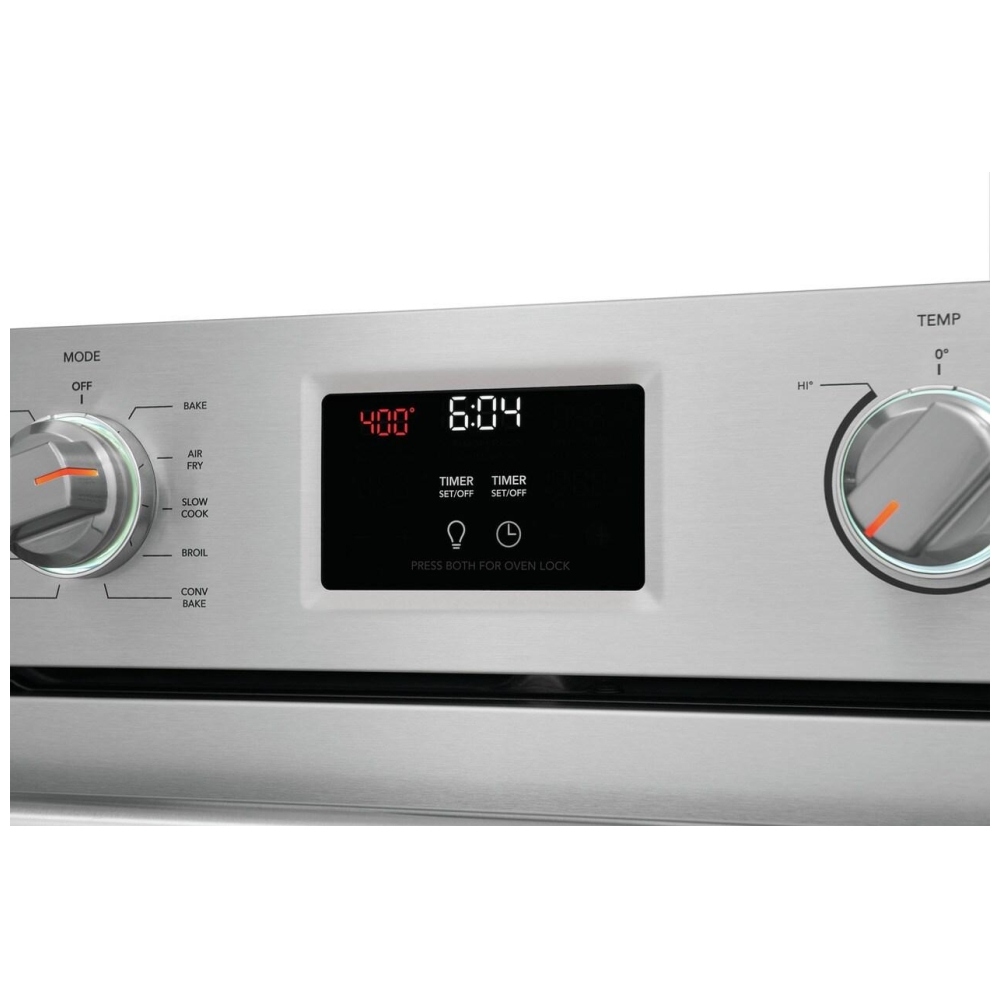

Display | |
Control Location | Top |
Display Interface Color | White |
Display Light Color | White |
Display Type | Capacitive Touch |
