Description & Features
KitchenAid KICU509XSS Cooktop, 30" Exterior Width, Induction Cooktop, 4 Burners, Induction, 3700W, Stainless Steel colour
This 30-inch induction cooktop uses electromagnetic energy to generate instant heat directly to your cookware without spreading the heat across the entire cooking surface. A bridge function lets you combine the power of two elements into one large cooking zone for specialty cookware such as a griddle or oval pan.

4-Element Cooktop
Provides four independent cooking surface areas.

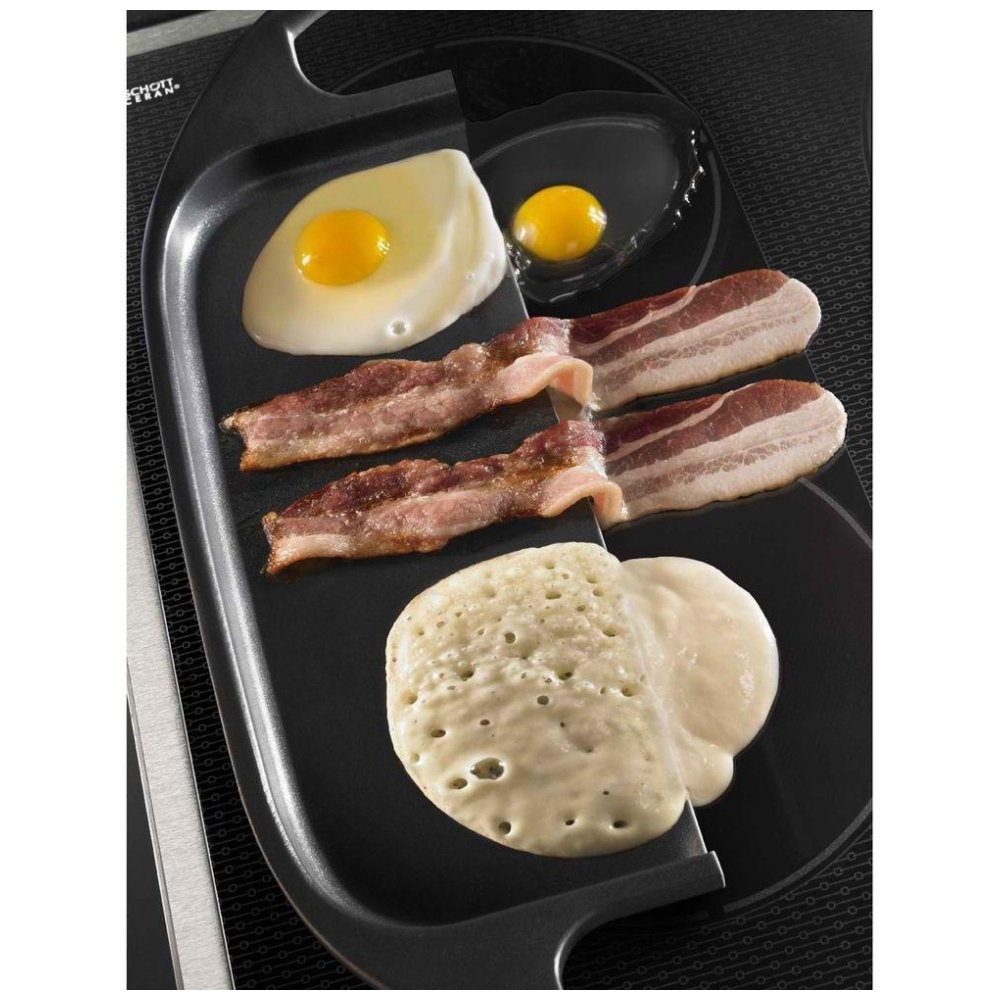

2 Elements with Bridge Function
Allows the flexibility to convert two cooking zones into one large cooking zone which provides additional space to accommodate specialty cookware.


12 Heat Level Settings
Provide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.



Top 3 Features

4-Element Cooktop

Provides four independent cooking surface areas.

2 Elements with Bridge Function

Allows the flexibility to convert two cooking zones into one large cooking zone which provides additional space to accommodate specialty cookware.

12 Heat Level Settings

Provide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.

Additional Features

Performance Boost

Allows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling.

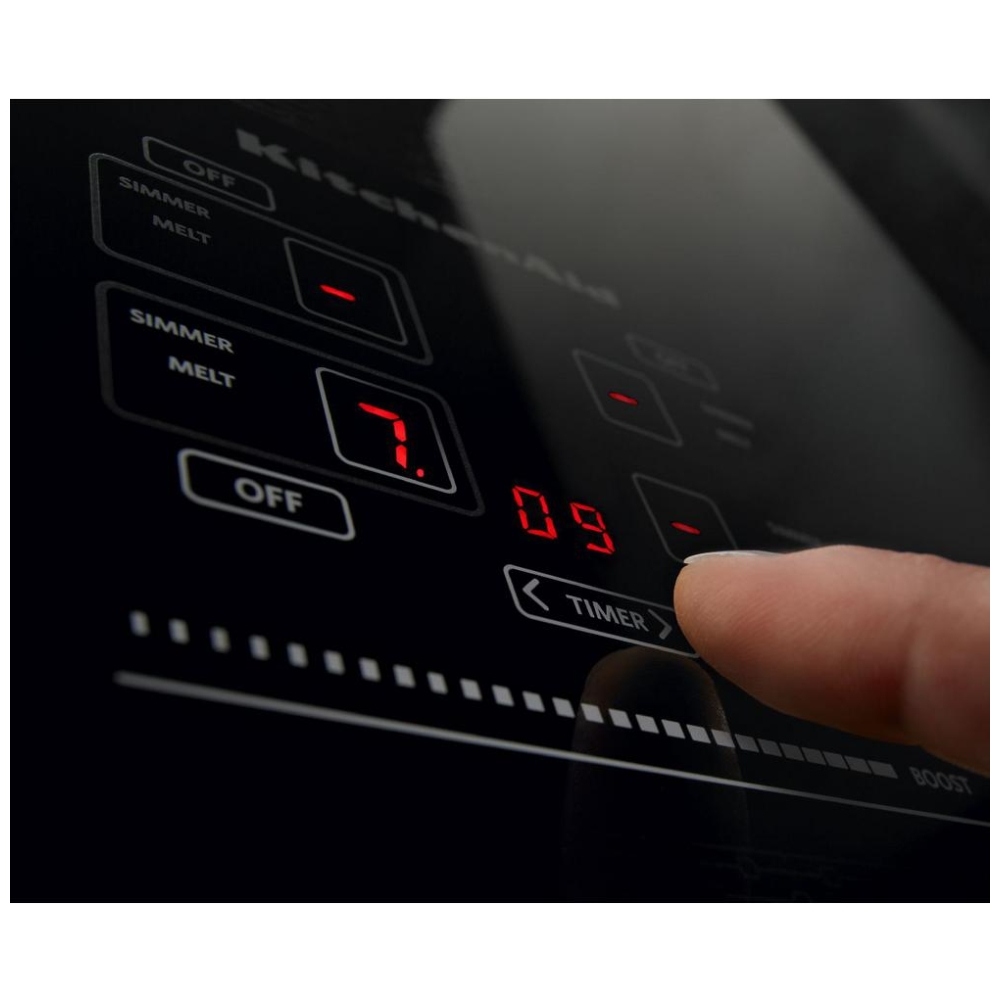

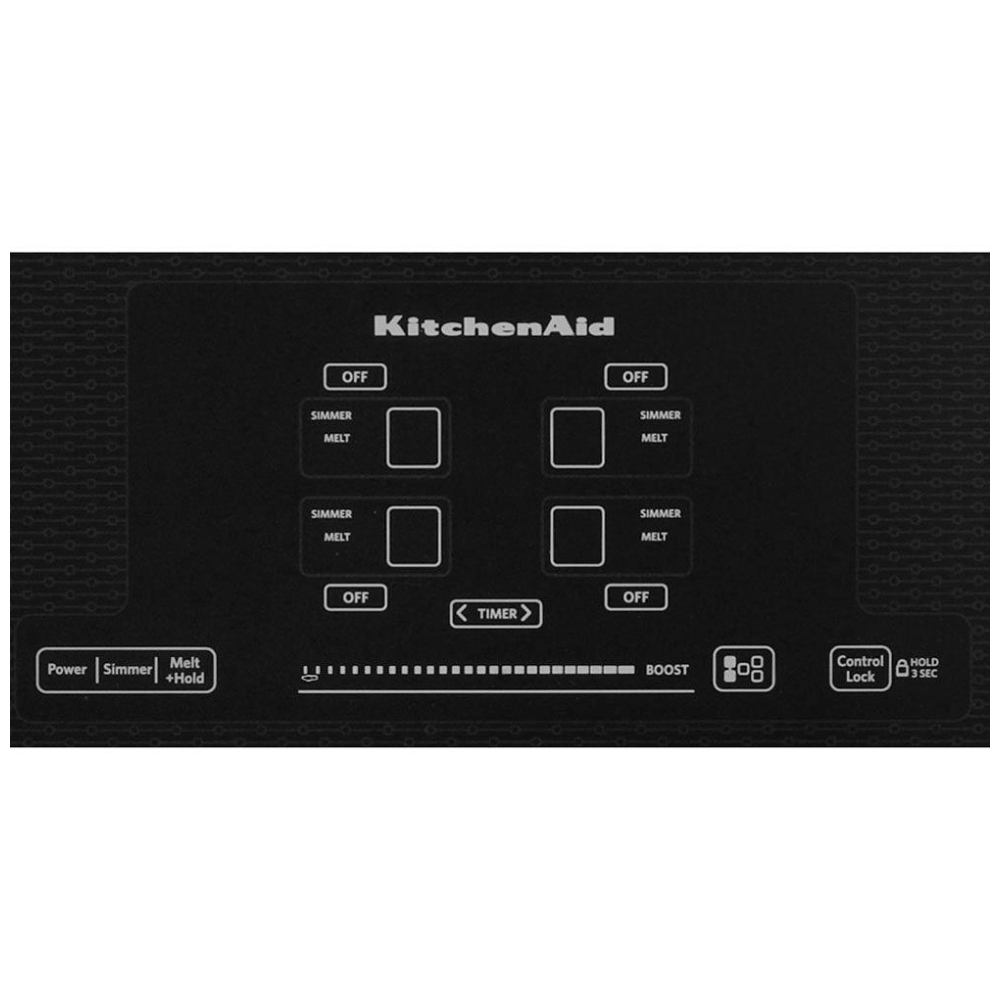

Touch-Activated Controls

Integrate seamlessly into the surface and include a slider for heat-level selection.

Simmer Function

Automatically selects a low power level to help maintain a constant simmer without boiling over.

Melt and Hold

Uses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.

Pan Size Detection

Provides feedback on whether pan size is suitable for the selected element.

Control Lock

Helps prevent unintended use and makes it easier to clean the control panel.


UPC: 883049231457

Specs
Certifications
ADA Compliant No
Prop 65 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
Configuration and Overview
Cooktop Type Standard
Fuel Type Electric Induction
Installs Over Built-In Oven Yes
Size 76.20 cm, 30 in
Cooktop Details
Automatic Pan Detection Yes
Cooktop Element Style Induction
Cooktop Surface Color Black
Downdraft Vent No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Left Front Element-Burner Size 7""
Left Rear Element-Burner Size 7""
Number of Cooking Element-Burners 4
Right Front Element-Burner Size 6""
Right Front Element-Burner Type Single
Right Rear Element-Burner Size 11""
Appearance
Digital Display Yes
Refinements
Features Even-Heat Melt Burner
Electrical
Power Cord Included No
Volts 240
Controls
Control Location Front
Knob Color NA
EndecaProps
ProductOutletCategories Cooking
Status Badge Espot CA New
GDS
GPC Code 10001951
IsInvoiceUnit true
IsOrderableUnit true
Product Type EA
UDEX 1100400623
isBaseUnit true
isConsumerUnit true
Details
Cooktop Surface Material Ceramic Glass
Description
Combinations with Oven KOSC504, KOSE500, KOSE507, KOSE900, KOST100, KOST107
Fuel Type Electric Induction

Dimensions
Depth 21 5/16
Width 30 3/4
Height 3 1/8
Carton Height 7 3/4
Cutout Depth 19 5/16
Cutout Width 29 1/2
Gross Weight 51
Carton Depth 25 1/2
Carton Width 34 1/2

Certifications
Prop 65 Standard
ADA Compliant No
UL UL

Description
Combinations with Oven KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107

Configuration and Overview
Fuel Type Electric Induction
Cooktop Type Standard
Size (IN,inches) 30
Installs Over Built-In Oven Yes

Controls
Control Type Tap Touch
Control Location Front
Knob Color NA

Cooktop Details
Hot Surface Indicator Light Yes
Cooktop Surface Material Ceramic Glass
Automatic Pan Detection Yes
Downdraft Vent No
Heating Element On Indicator Light Yes
Cooktop Element Style Induction
Cooktop Surface Color Black
Number of Cooking Element-Burners 4
Left Front Element-Burner Power 2500W/1800W
Left Front Element-Burner Size 7"
Left Front Element-Burner Type Bridge
Left Rear Element-Burner Power 2500W/1800W
Left Rear Element-Burner Size 7"
Right Front Element-Burner Size 6"
Left Rear Element-Burner Type Bridge
Right Front Element-Burner Type Single
Right Front Element-Burner Power 1800W/1400W
Right Rear Element-Burner Type Single
Right Rear Element-Burner Power 3700W/2300W
Right Rear Element-Burner Size 11"

GDS
isBaseUnit true
isConsumerUnit true
GPC Code 10001951
IsDispatchUnit .
IsInvoiceUnit true
IsOrderableUnit true
Product Type EA
UDEX 1100400623

Appearance
Digital Display Yes

Features
Griddle NA
Selection Control Lock,Melt,Heating Element On Indicator Light,Power On Indicator Light,Power Boost,Simmer,Timer

Electrical
Amps 40
Power Cord Included No
Volts 240
Hz 60

Refinements
KAD Cooktop Even-Heat Melt Burner

Refinement
Style Cooktops
