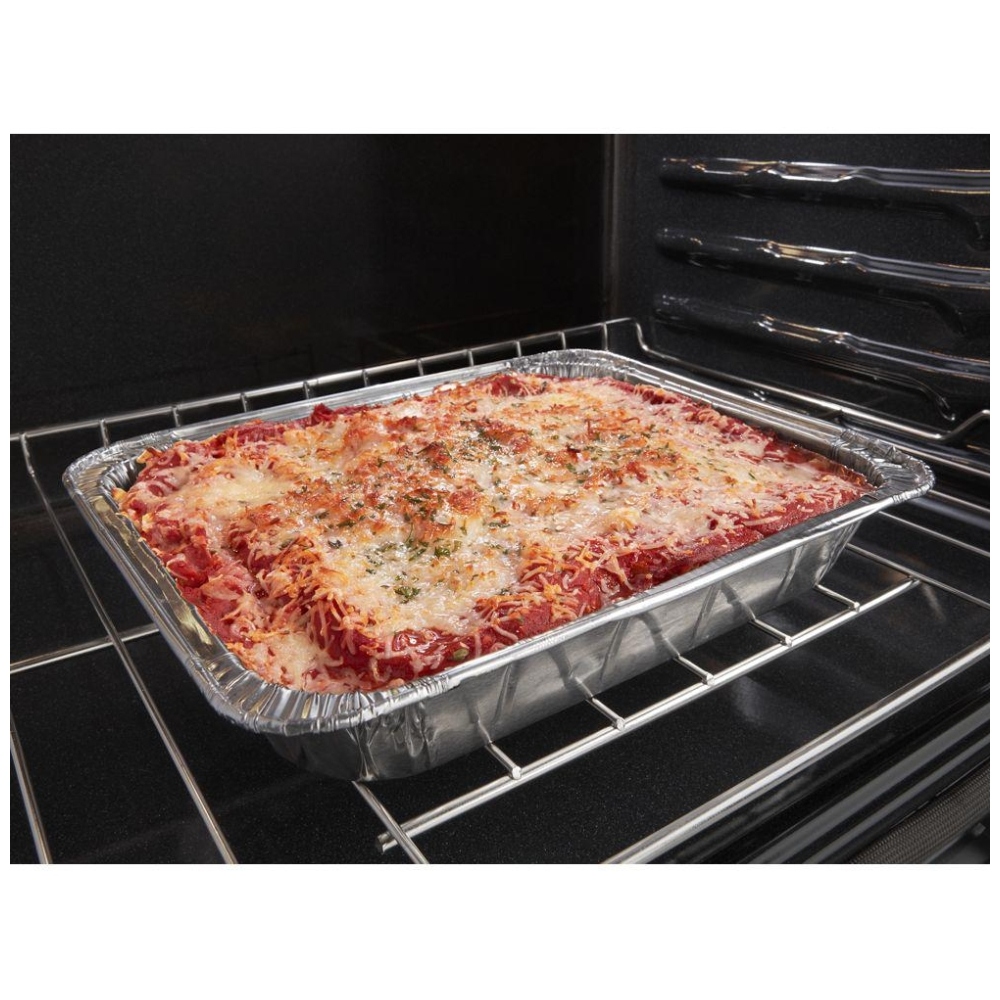

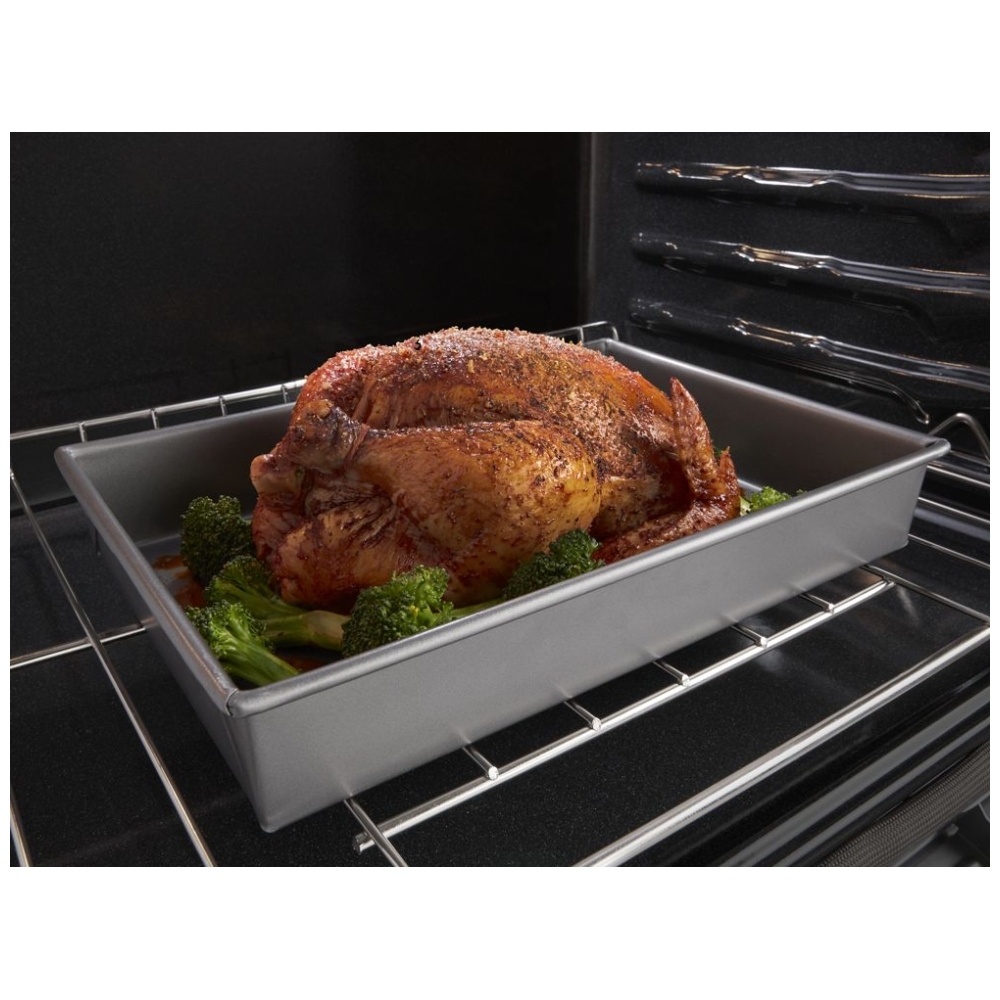

- Easily cook large meals with 5.0 cu. ft. capacity
- This wall oven meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

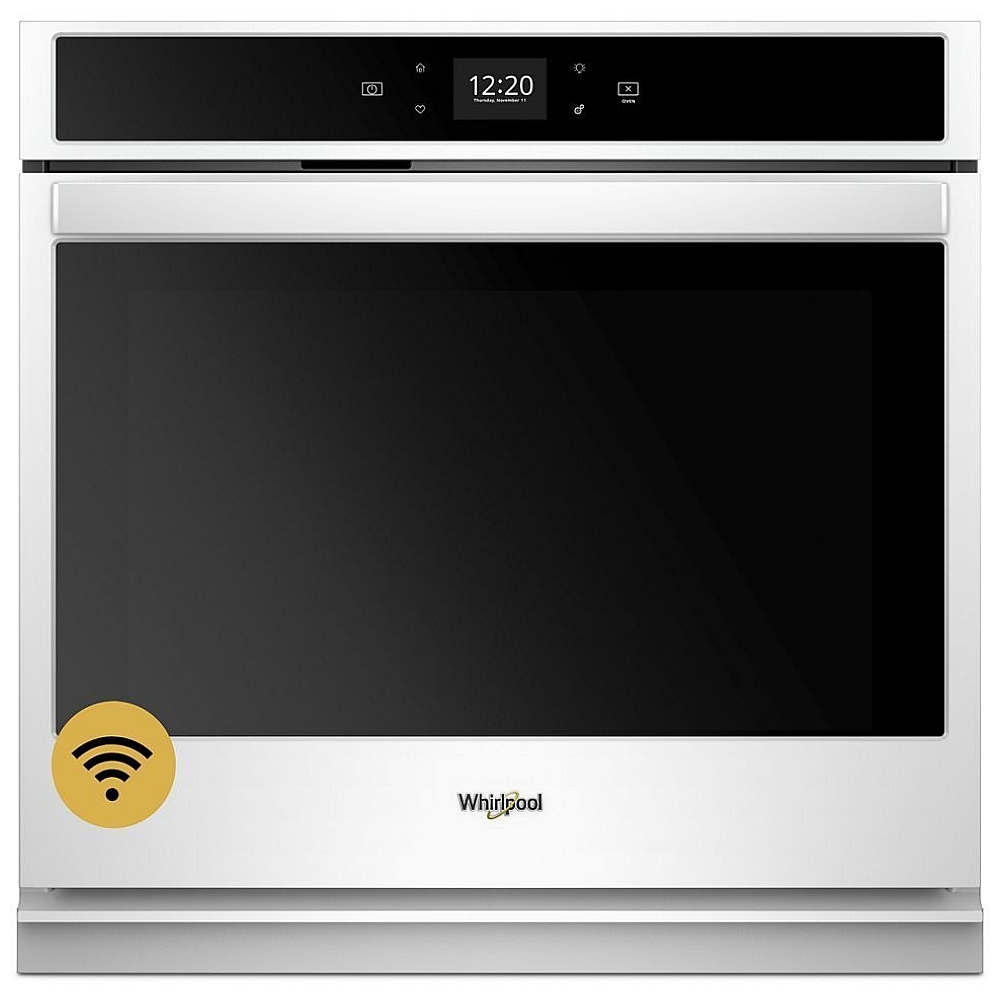

- Whirlpool® Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates* to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they re released.
*Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.ca/connect.
- Use your smartphone or tablet to remotely disable the control panel to avoid unintended use.
- Get immediate support for quick solutions by using your smartphone or tablet to access troubleshooting videos.
- Keep an eye on your meal through the extra-large oven window.
- If your new wall oven doesn't fit, Whirlpool brand will pay up to $300 toward cabinet modification.

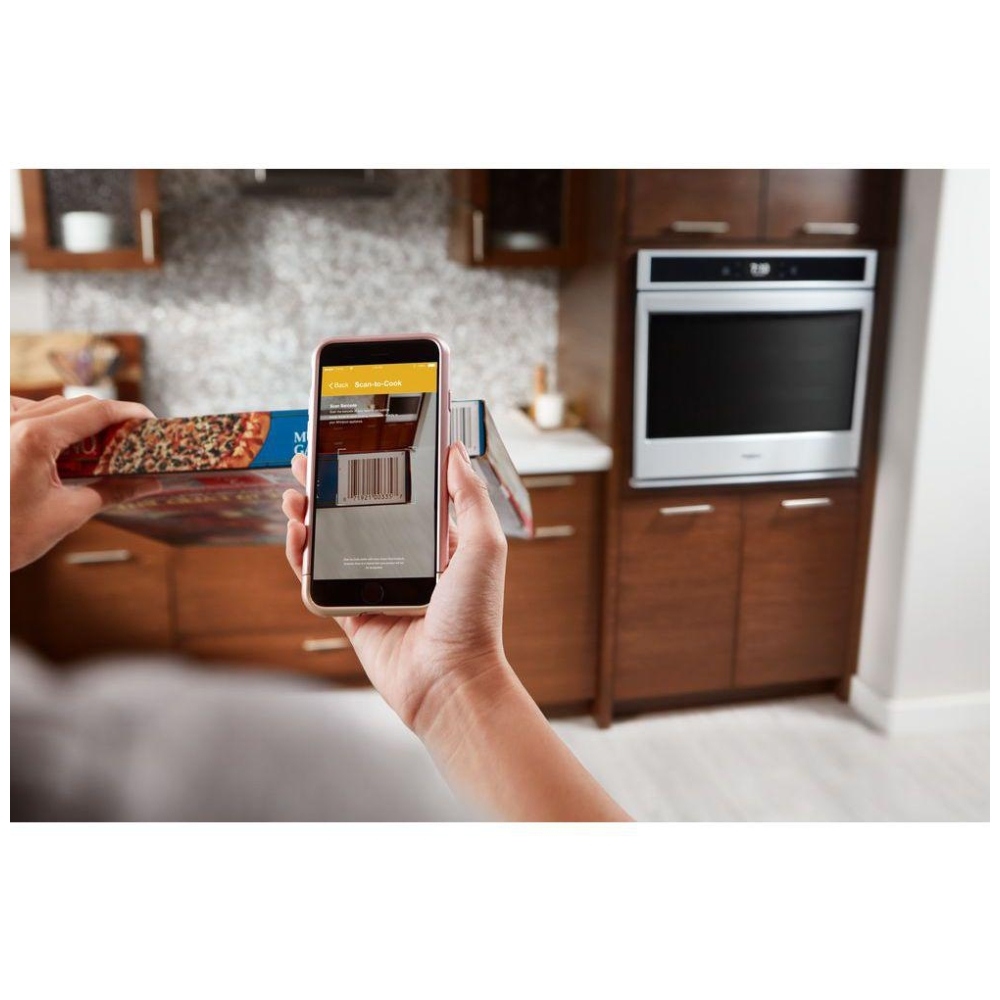

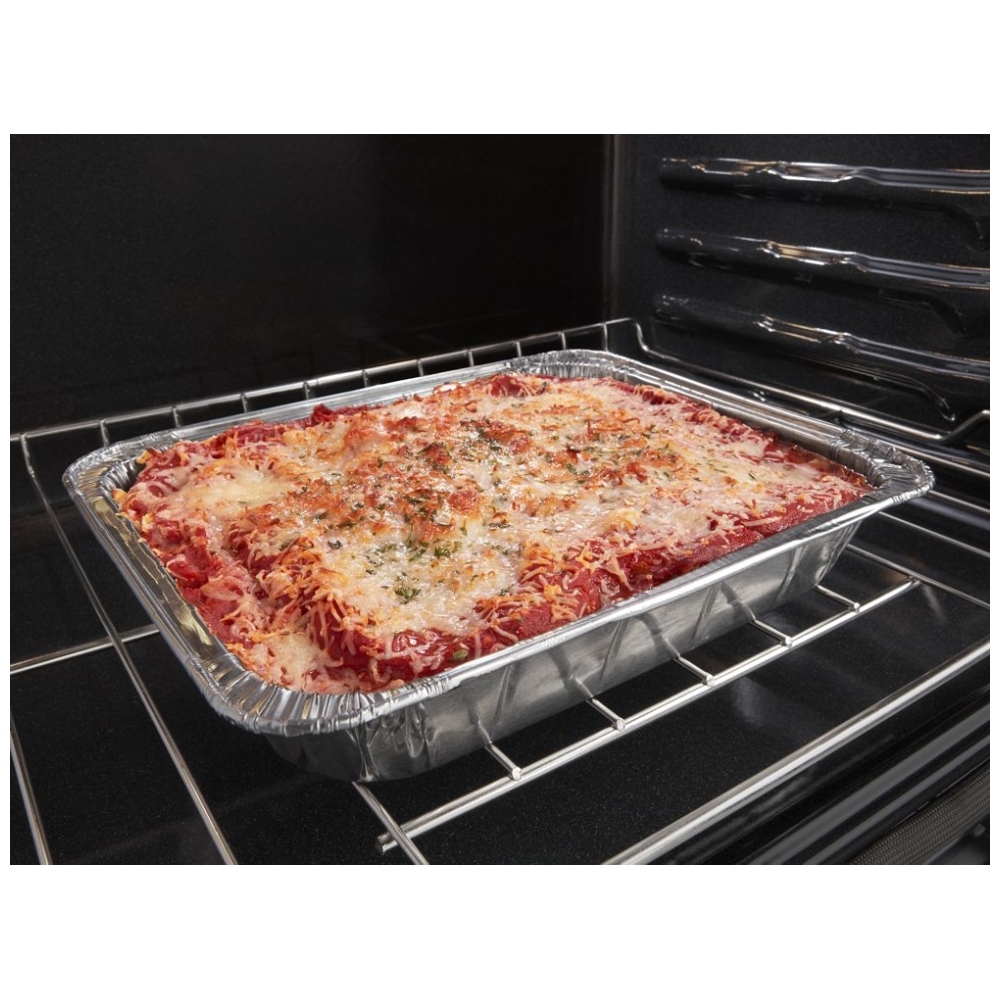

- Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
- Keep track of scheduled appointments and make sure issues are known using the Whirlpool® app to send data from the appliance directly to Whirlpool brand customer service.
- Keep dishes from getting cold with this setting that delivers low heat to the oven. Control it remotely through your Whirlpool® app or manually on the oven so food stays warm and ready to serve whether you're home or away.
- Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to your appliance all at once.* The temperature automatically adjusts based on the recipe you enter for great results.
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacyinfo at whirlpool.com/connect.

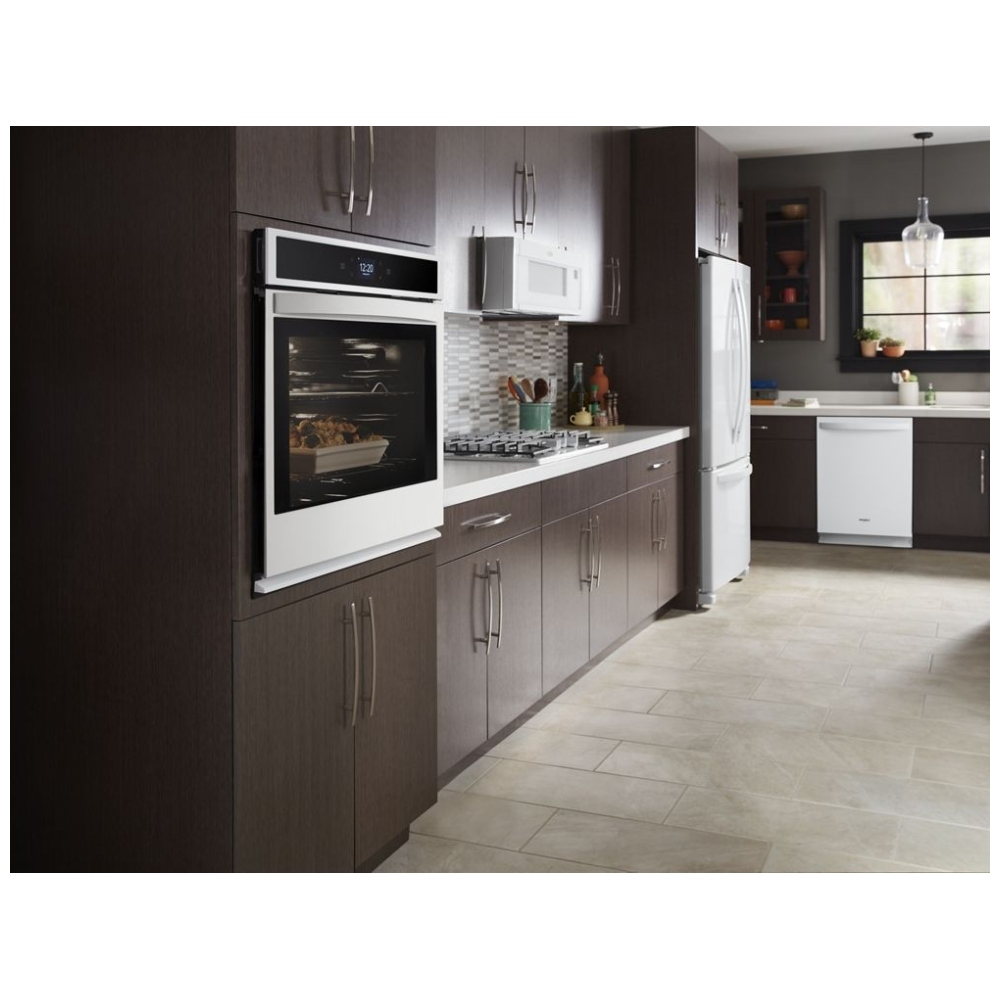

- These wall ovens can be installed flush, creating a seamless visual line with cabinetry, without a separate accessory flush kit.
- Start preparing for guests from your smartphone or tablet with Party mode that automatically turns on the Keep Warm setting so dishes stay ready to serve.
- Save time with faster preheating. A rear fan combined with the use of all of the elements helps to heat the oven quickly.
- When set to remote enable, use your smartphone or tablet to remotely turn your oven on so it's heated up and ready to cook meals when you are.
- Use Sabbath mode to keep the oven on the "Bake" setting at a constant temperature until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.
- You don't need to be a tech expert to connect your new appliance. Simply open the Whirlpool® app, add your appliance and follow the guided experience to get up and running quickly.

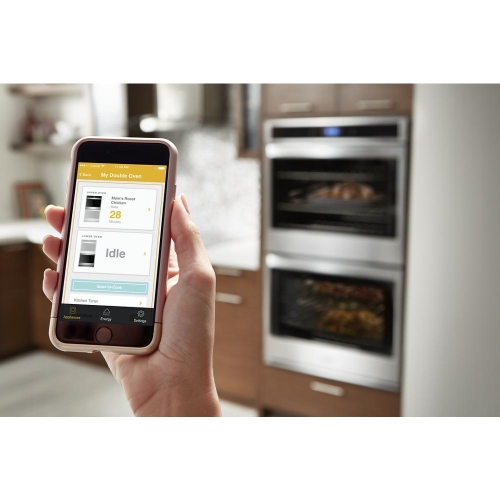

- When you re busy in another room, use your smartphone to monitor cooking progress, so you re ready to eat when dinner s done.
- Clean up after everyday light spills using only heat and 1-1/4 cups of water-no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.
- Get evenly baked food with a sensor that monitors oven temperature and adjusts the cooking elements.
- Control your kitchen no matter what you ve got on your hands with simple voice commands using the Google Assistant or an Alexa-enabled device.
Manufacturer's Warranty: 1 year
UPC: 883049444482
EAN: 0883049444482
Certifications | |
ADA Compliant | ADA Height and Side and Front Reach Compliant |
CUL | Yes |
Energy Rating | 356 |
Star K Certified | Yes |
UL | Yes |
prop65 | Standard |
Controls | |

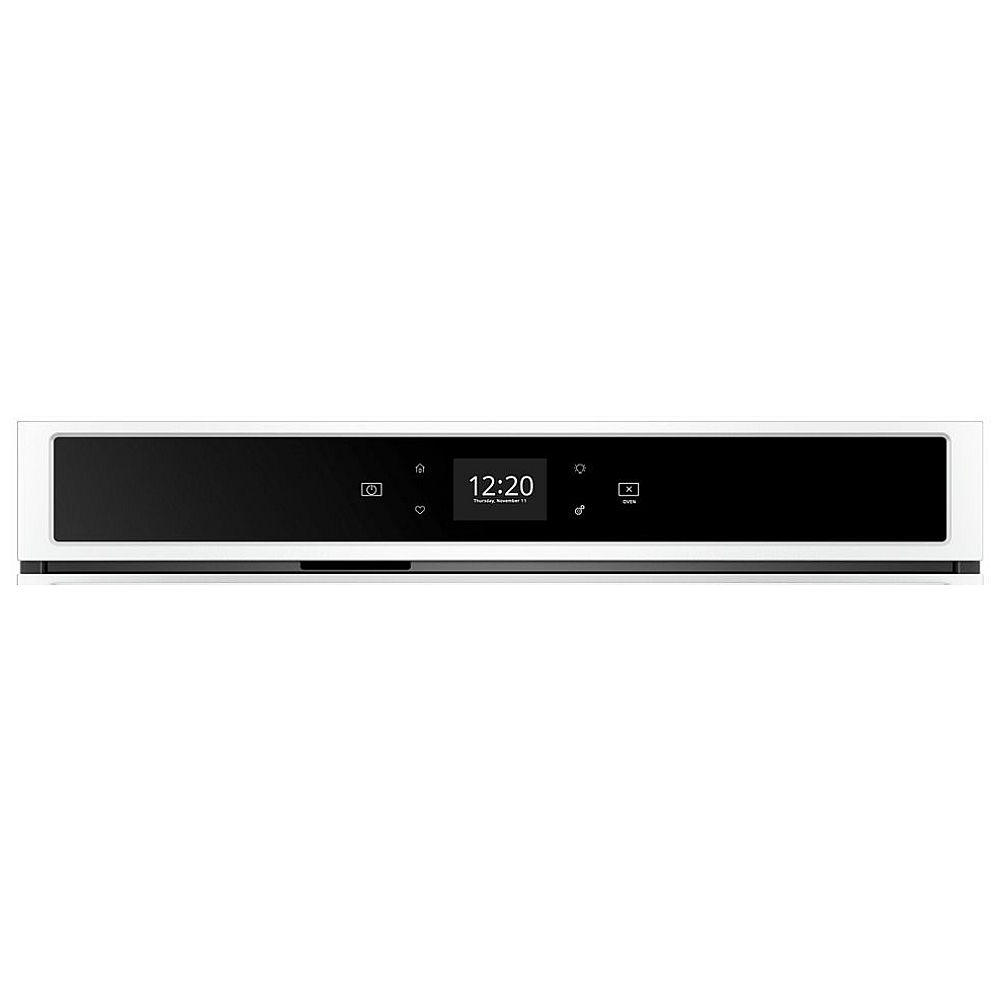

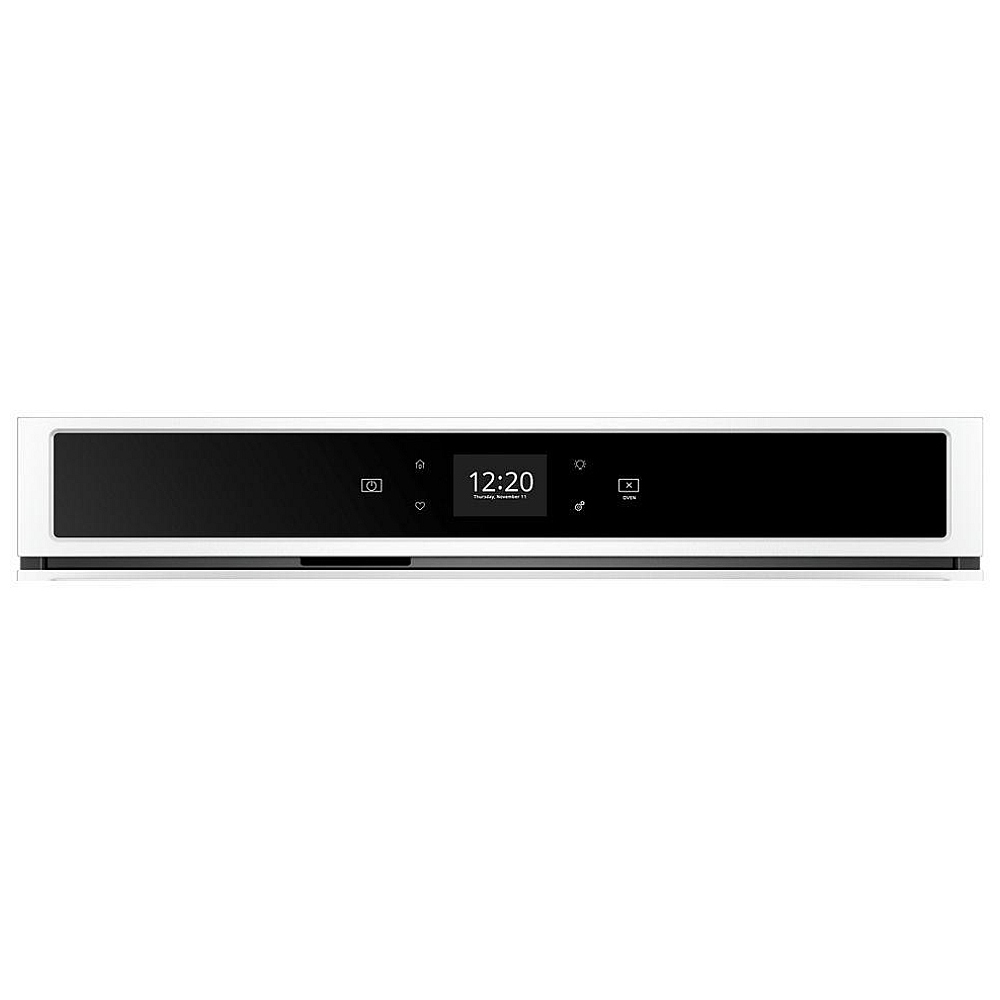

Control Type | Glass Touch Digital Display |
Display Color | Full Color |
Electronic Display Type | LCD Screen |
Details | |
Cooktop Combinations | G7CE3034; G7CE3055; G7CE3635; G9CE3065; G9CE3675; RCS2012; UCIG245KBL; W3CG3014; W5CE1522; W5CE3024; W5CE3625; WCC31430; WCE55US0; WCE55US4; WCE55US6; WCE77US0; WCE77US6; WCE97US0; WCE97US6; WCG51US; WCG51US6; WCG52424; WCG55US0; WCG55US6; WCG75US; WCG77US |
Delay Clean | Yes |
Flush Installation Approved | No |
Fuel Type | Electric |
LP Convertible | No |
Light Control | Oven Light Touch Pad |
Oven Automatic Shut-Off | Yes |
Oven Configuration | Single Oven |
Oven Selections | Audible Signal; Automatic Door Latch; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Favorites; Frozen Bake; Keep Warm Setting; Language Conversion; Rapid Preheat; Sabbath Mode; Start Time; Stop Time; Temperature Auto Adjust; Tim |
Oven Type | Single |
Temperature Conversion | Yes |
Dimensions | |
Cutout Depth | 24 |
Cutout Height | 28 |
Cutout Width | 28.5 |
Depth Closed Excluding Handles | 24.5 |
Depth Closed Including Handles | 26.438 |
Depth With Door Open 90 Degree | 46.75 |
Oven Capacity | 5 |
Oven Interior Depth | 19 |
Oven Interior Height | 18 |
Oven Interior Width | 25 |
carton depth | 31 |
carton height | 31 |
carton width | 35 |
gross weight | 145 |
net weight | 140 |
Electrical | |
Power Cord Included | No |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | White |
Handle Material | Plastic |
Oven Window Size | Extra Large |
Microwave Details | |
Language Conversion | English/French/Spanish |
Oven Details | |
Bake Element Power | 2,800 W |
Broiler Element Power | 3,600 W |
Broiler Location | Top of Oven |
Convection Functions | No |
Door Broil Position | Closed |
Door Lock | Yes |
Door Removable | Yes |
Hidden Bake Element | Yes |
Interior Coating | Porcelain |
Interior Color | Grey |
Light Type | Incandescent |
Number of Bake Elements | 1 |
Number of Broil Elements | 1 |
Number of Oven Lights | 2 |

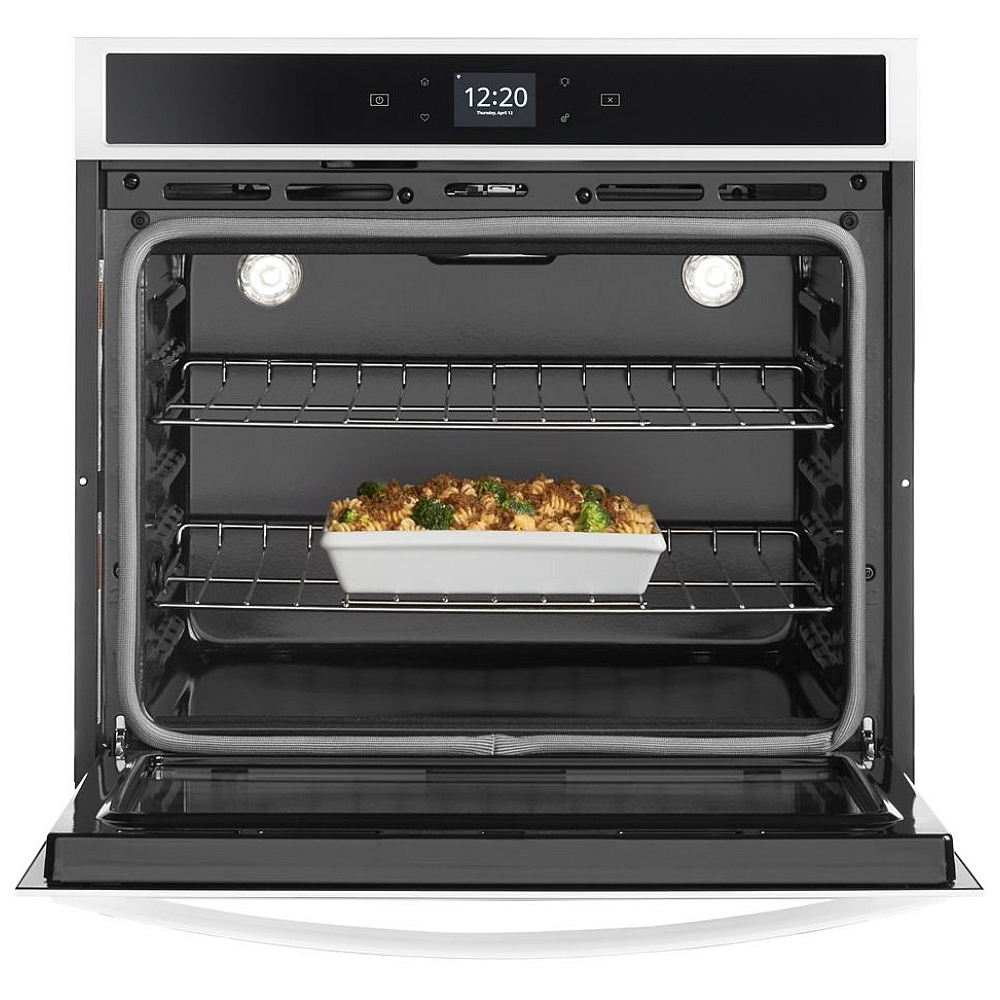

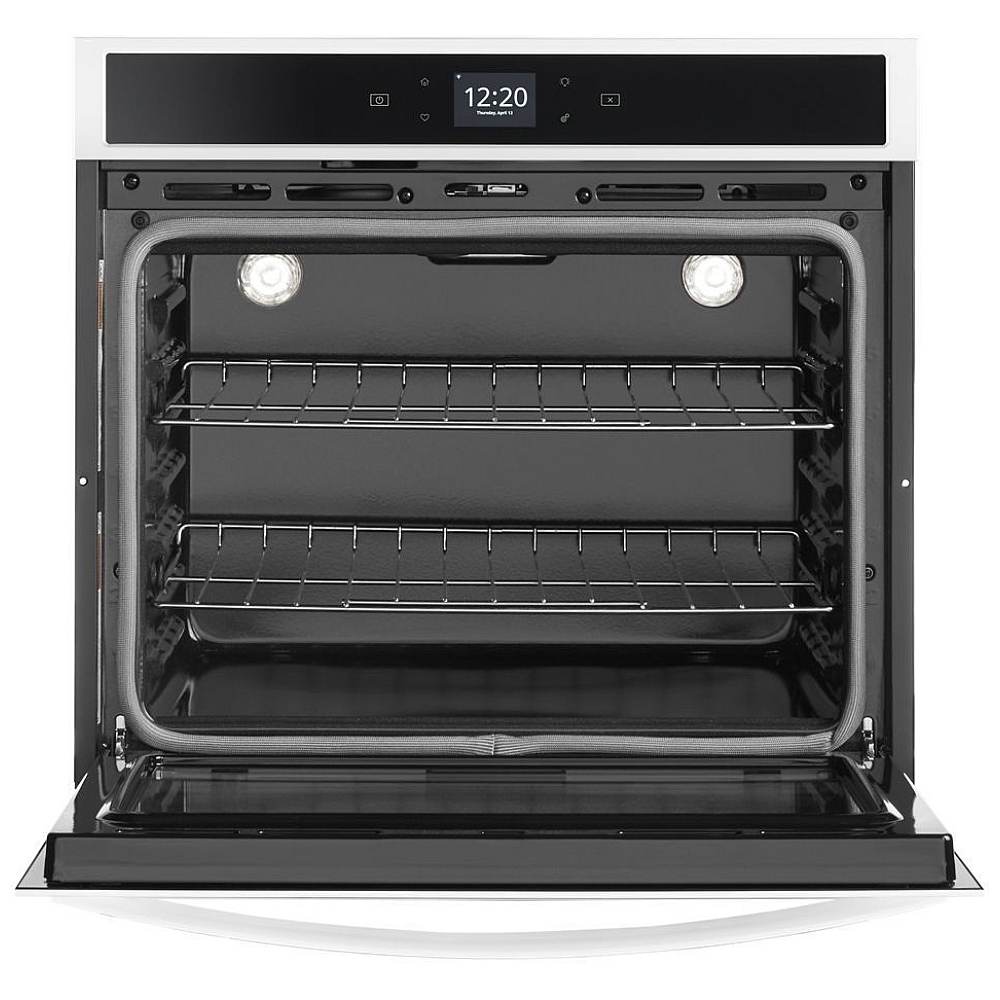

Number of Oven Racks | 2 |
Number of Rack Guides | 6 |
Oven Cleaning Type | Self-Cleaning w/Steam |
Oven Cooking System | Thermal |
Self-Cleaning Oven Racks | No |
Smart Compatibility | |
Connectivity | Amazon Alexa; Android; Google Assistant; iOS |
Smart Appliance | Yes |
Works With | App; Remote Access; Voice Controlled; WiFi |
Dimensions | |
---|---|
Depth | 26 7/16 |
Width | 30 |
Height | 28 3/4 |
Carton Depth | 31 |
Carton Height | 31 |
Carton Width | 35 |
Cutout Depth | 24 |
Cutout Height | 28 |
Cutout Width | 28 1/2 |
Depth Closed Excluding Handles | 24 1/2 |
Depth Closed Including Handles | 26 7/16 |
Depth With Door Open 90 Degree | 46 3/4 |
Gross Weight | 134 |
Net Weight | 121.0 |
Capacity (cubic feet) | 5.00 |
Certifications | |
Prop 65 | Standard |
ADA Compliant | ADA Height and Side and Front Reach Compliant |
CUL | Yes |
UL | UL |
Energy Rating (kWH/year) | 343 |
Kosher Consumer Friendly | Yes |
Configuration and Overview | |
Oven Type | Single |
Fuel Type | Electric |
Size (IN,inches) | 30 |
LP Convertible | No |
Oven Details | |
Door Removable | Yes |
Door Lock | Yes |
Language Conversion | English/French/Spanish |
Automatic Shut-Off | Yes |
Temperature Conversion | Yes |
Interior Color | Grey |
Number of Bake Elements | 1 |
Door Broil Position | Closed |
Oven Cooking System | Thermal |
Number of Broil Elements | 1 |
Hidden Bake Element | Yes |
Broiler Location | Top of Oven |
Interior Coating | Porcelain |
Convection Functions | No |
Light Control | Oven Light Touch Pad |
Light Type | Incandescent |
Delay Clean | Yes |
Self-Cleaning Oven Racks | No |
Description | |
Cooktop Combinations | G7CE3034,G7CE3055,G7CE3635,G9CE3065,G9CE3675,RCS2012,W3CG3014,W5CE1522,W5CE3024,W5CE3625,WCC31430,WCE55US0,WCE55US4,WCE55US6,WCE77US0,WCE77US6,WCE97US0,WCE97US6,WCG51US,WCG51US6,WCG52424,WCG75US,WCG97US,WCG97US6 |
Exterior | |
Oven Door | Metal & Glass |
Oven Window Size | Extra Large |
Handle Color | White |
Appearance | |
Flush Installation Approved | No |
Handle Material | Plastic |
Controls | |
Control Type | Glass Touch Digital Display |
Display Color | Full Color |
Electronic Display Type | LCD Screen |
Features | |
Selection | Temperature Auto Adjust,Keep Warm Setting,Audible Signal,Control Lock,Cancel/Off,Automatic Door Latch,Language Conversion,Favorites,Start Time,Stop Time,Broil,Frozen Bake,Cook Time Indicator,Delay Start,Warm Hold,Sabbath Mode,Rapid Preheat,Clock,Timer |
Details | |
Broiler Element Power | 3600W |
Number of Oven Lights | 2 |
Bake Element Power | 2800W |
Oven Rack 1 Type | Standard |
Number of Rack Guides | 6 |
Number of Oven Racks | 2 |
Oven Interior Depth(IN,inches) | 19 |
Oven Interior Width(IN,inches) | 25 |
Oven Interior Height(IN,inches) | 18 |
Oven Rack 2 Type | Standard |
Oven Cleaning Type | Self-Cleaning w/Steam |
Electrical | |
Power Cord Included | No |
Volts | 240 |
Amps | 20 |
Refinements | |
WHR Wall Ovens | ADA Compliant |
Refinement | |
Style | Wall Ovens |
Configuration | |
Oven Configuration | Single Oven |
Compatibility | |
Connectivity | Amazon Alexa,Android,Google Assistant,iOS |
Works With | WiFi,App,Remote Access,Voice Controlled |
