KitchenAid KODE507EBS
Discontinued
>> View & Compare KitchenAid Built In Cooking Line Up << >> View & Compare KitchenAid Built In Cooking Line Up <<
>> View & Compare KitchenAid Wall Oven Line Up << >> View & Compare KitchenAid Wall Oven Line Up <<
4H7AB3
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to % cash-back when paying by !*
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $300.00 for 18 months
Price Match & Beat Guarantee: We beat any competitor’s price!*
Ratings & Reviews
4.5
91%
recommend this
Read Reviews
(2889 reviews)
Similar Colours and Options
KODE507EBL
KODE507EBL
Black
$4,882.00 CAD
KODE507ESS
KODE507ESS
Stainless Steel
$5,265.00 CAD
KODE507EWH
KODE507EWH
White
$5,141.00 CAD
4H7AB3
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to % cash-back when paying by !*
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $300.00 for 18 months
Price Match & Beat Guarantee: We beat any competitor’s price!*
Description & Features

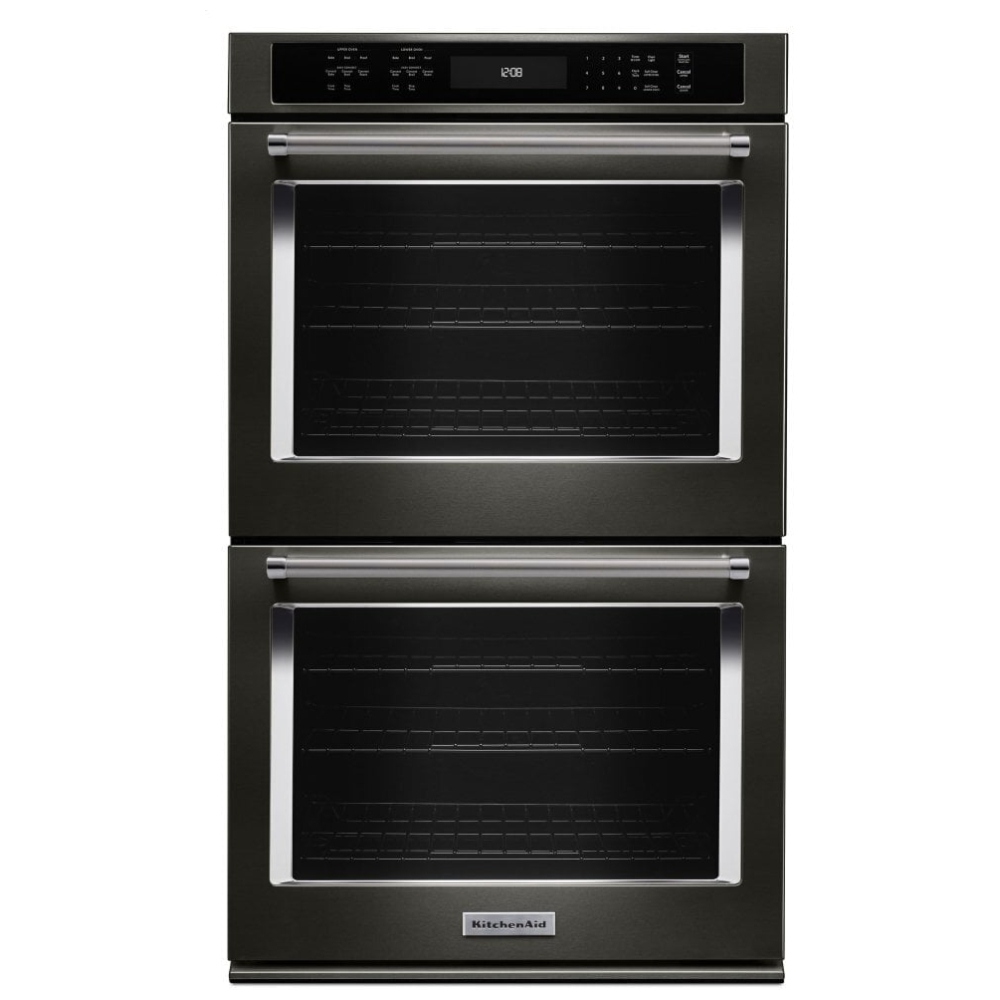

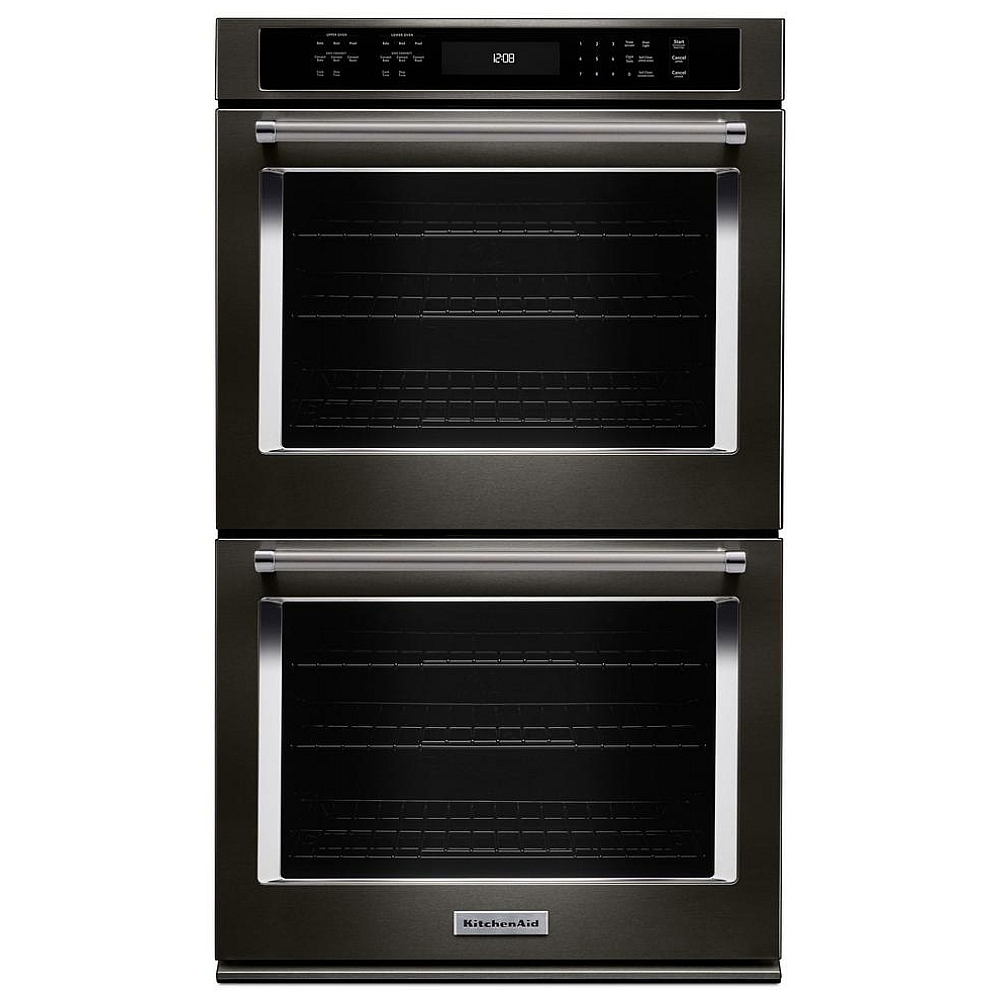

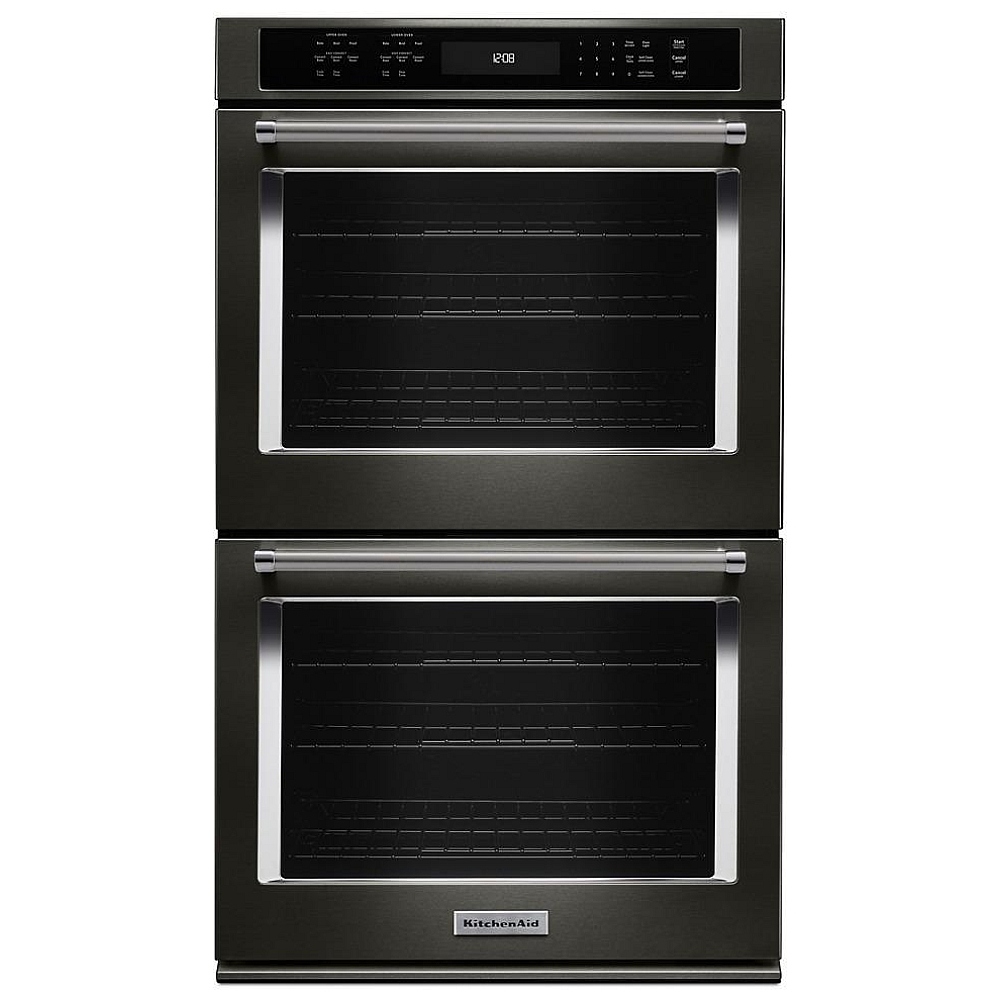

This 27" Double Wall Oven with Even-Heat™ True Convection provides consistent heating and even cooking. A unique bow-tie shaped design and convection fan helps ensure there are no burnt edges or undercooked centers. The Temperature Probe delivers accurate measurement of internal temperatures of meats, poultry, and casseroles without opening the oven. Bold design details are the perfect balance of elegance and functionality.
  • 4.3 Cu. Ft. Capacity
  • The spacious capacity simultaneously accommodates multiple dishes.
  • EasyConvect™ Conversion System
  • Takes the guesswork out of convection cooking by ensuring exceptional results when experimenting with new recipes or familiar favorites.
  • Even-Heat™ Preheat
  • Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.

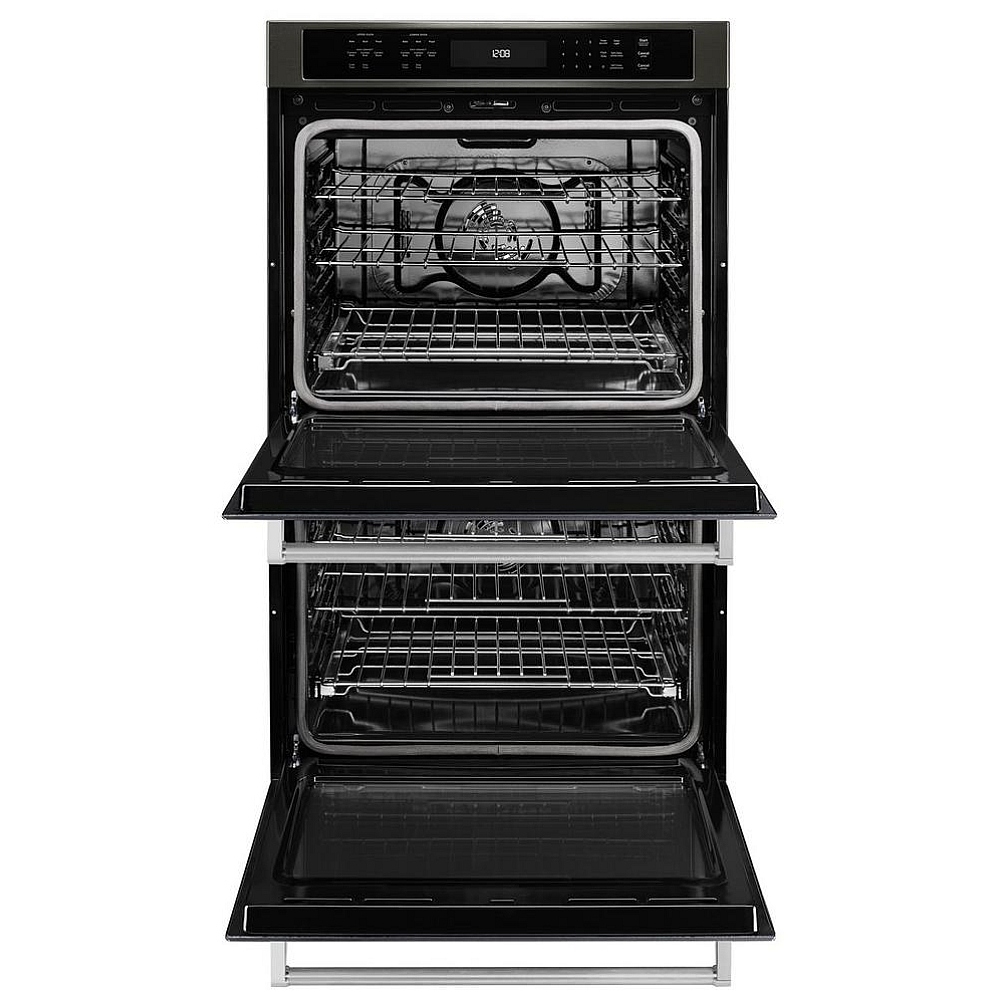

  • Even-Heat™ True Convection Oven (both ovens)
  • features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
  • FIT System Guarantee
  • Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.

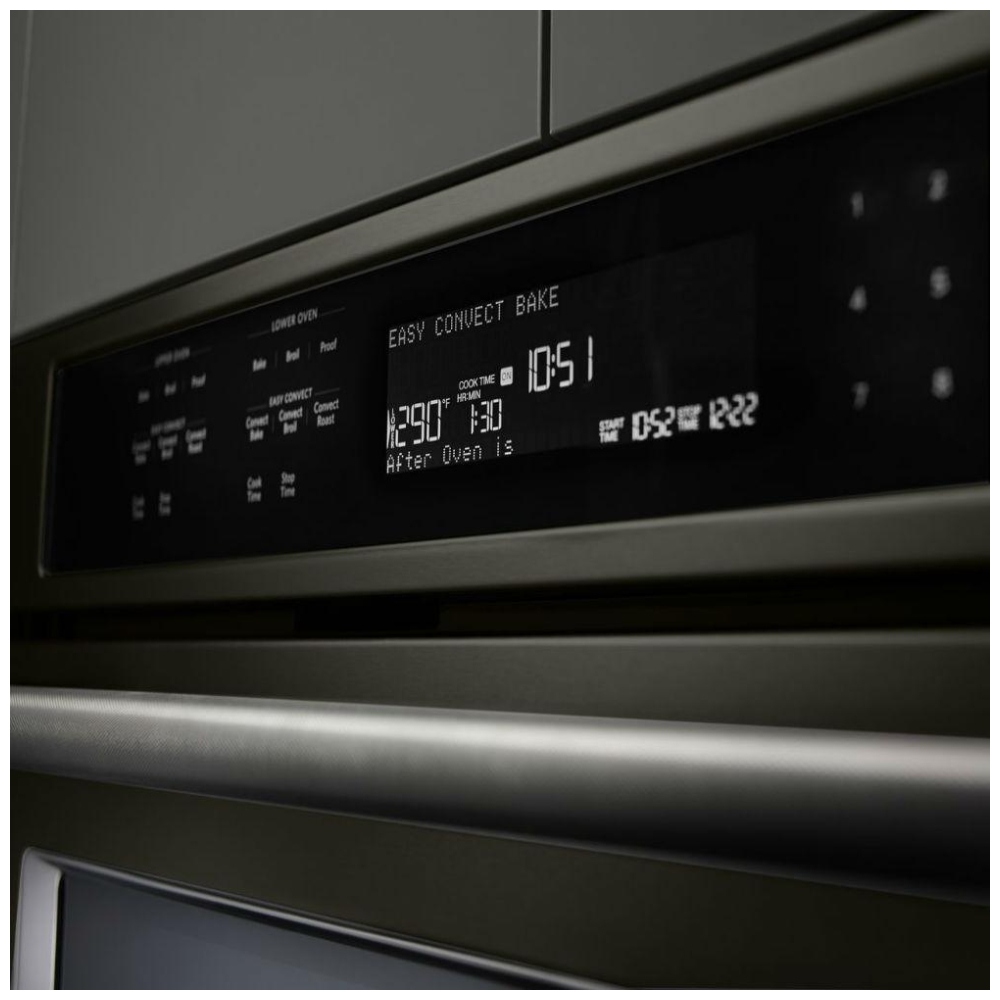

  • Glass-Touch Display with Control Lock Function
  • Gives an intuitive glass touch screen experience that s easy to wipe clean.

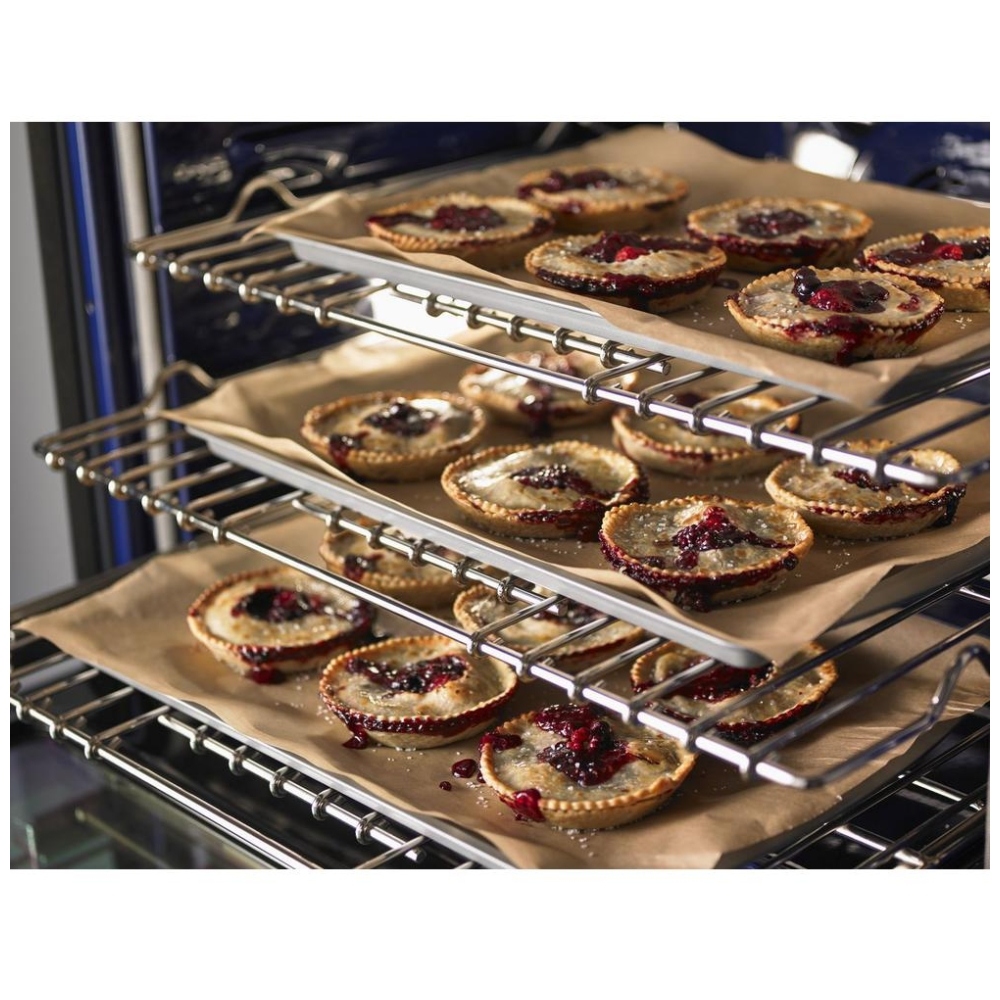

  • SatinGlide™ Roll-Out Extension Rack (both ovens)
  • Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.
  • Self-Cleaning Cycle
  • uses high temperatures to loosen baked-on food without the need for harsh chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
  • Temperature Probe (both ovens)
  • Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.

Manufacturer's Warranty: 1 year

UPC: 883049416038

EAN: 0883049416038

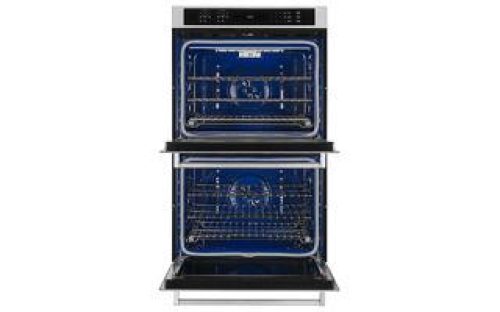

Even-Heat™ True Convection Oven (both ovens)
Even-Heat™ True Convection Oven (both ovens)
KODE507EBS - Even-Heat™ True Convection Oven (both ovens)
Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the oven is heated to, and stays at, the perfect temperature.

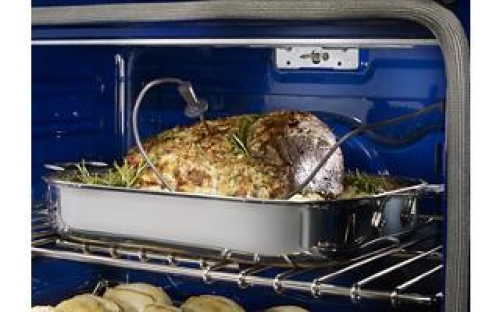

Temperature Probe (both ovens)
Temperature Probe (both ovens)
KODE507EBS - Temperature Probe (both ovens)
Allows accurate measurement of internal temperatures of meats, poultry, and casseroles without having to open the oven so that food can be cooked perfectly. Comes with 1 meat probe cord for use in either oven.

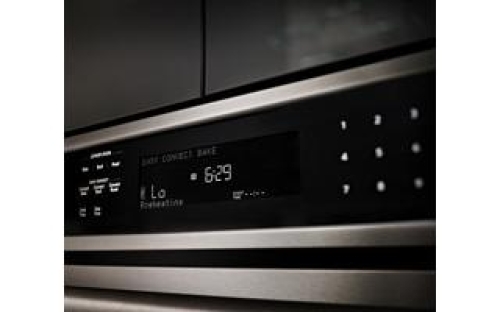

Even-Heat™ Preheat
Even-Heat™ Preheat
KODE507EBS - Even-Heat™ Preheat
Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.
FIT System Guarantee
FIT System Guarantee
KODE507EBS - FIT System Guarantee
Allows for customization of wall oven instillation to match the height of existing cabinets through flexible design elements.

Specs
Certifications
Ada Compliant No
Cul Yes
Energy Rating 325
Prop65 Standard
Ul Yes
Controls
Control Type Glass Touch Digital Display
Display Color White
Electronic Display Type Digital
Details
Delay Clean Yes
Flush Installation Approved Yes
Fuel Type Electric
Light Control Oven Light Touch Pad
Lp Convertible No
Oven Automatic Shut-off Yes
Oven Configuration Double Oven
Oven Selections Clock; Control Lock; Delay Start; Proofing; Sabbath Mode; Star K; Temperature Probe; Time Bake; Timer
Oven Type Double
Power On Indicator Light Yes
Temperature Conversion Yes
Dimensions
Product Height 51.25
Carton Height 53
Gross Weight 240
Upper Oven Capacity 4.3
Carton Width 31.5
Lower Oven Interior Height 18
Upper Oven Interior Width 22
Product Depth 27.125
Depth With Door Open 90 Degree 46.75
Lower Oven Interior Width 22
Cutout Depth 24
Cutout Height 50.25
Lower Oven Capacity 4.3
Upper Oven Interior Depth 19
Carton Depth 31
Cutout Width 25.5
Upper Oven Interior Height 18
Net Weight 216
Product Width 27.0
Lower Oven Interior Depth 19
Exterior Details
Door Type Metal & Glass
Handle Color Stainless Steel
Handle Material Metal
Oven Window Size Extra Large
Microwave Details
Language Conversion English/French
Oven Details
Broiler Element Power 4,000 W Both
Broiler Location Top of Oven
Convection Element Type True
Convection Functions Bake Broil Roast Both
Door Broil Position Closed
Door Lock Yes
Door Removable Yes
Hidden Bake Element Yes
Installable Under Cooktop No
Interior Coating Porcelain
Interior Color Black
Light Type Halogen
Lower Oven Number of Oven Lights 2
Number of Lower Oven Racks 3
Number of Lower Rack Guides 6
Number of Upper Oven Racks 3
Number of Upper Rack Guides 6
Oven Cleaning Type Adjustable Self Cleaning
Oven Cooking System Convection Both
Self-cleaning Oven Racks No
Upper Oven Number of Oven Lights 2

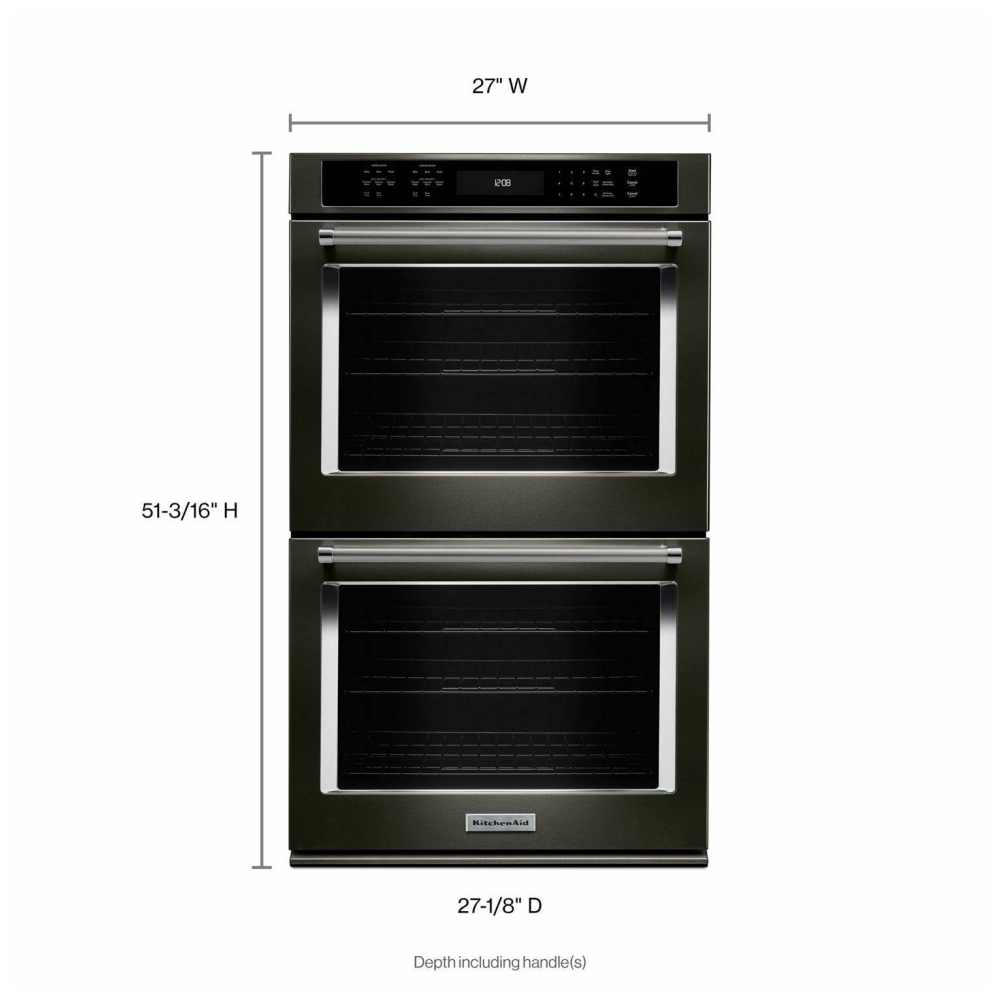

Dimensions

CAPACITY

8-3/5

CUTOUT DEPTH

60.96 cm, 24.0 in

CUTOUT HEIGHT

127.64 cm, 50-1/4 in

CUTOUT WIDTH

64.77 cm, 25-1/2 in

DEPTH

68.90 cm, 27-1/8 in

DEPTH WITH DOOR OPEN 90 DEGREE

118.74 cm, 46-3/4 in

HEIGHT

130.18 cm, 51-1/4 in

LOWER OVEN CAPACITY

121.69 l, 4.3 cu. ft.

UPPER OVEN CAPACITY

121.69 l, 4.3 cu. ft.

WIDTH

68.58 cm, 27.0 in

Configuration and Overview

CUL

Yes

FUEL TYPE

Electric

INSTALLABLE UNDER COOKTOP

No

LP CONVERTIBLE

No

OVEN TYPE

Double

SIZE

68.58 cm, 27 in

Oven Details

AUTOMATIC SHUT-OFF

Yes

BAKE ELEMENT POWER

2800W Both

BROILER LOCATION

Top of Oven

CONVECTION ELEMENT TYPE

True

CONVECTION FUNCTIONS

Bake Broil Roast Both

DELAY CLEAN

Yes

DOOR BROIL POSITION

Closed

DOOR LOCK

Yes

DOOR REMOVABLE

Yes

HIDDEN BAKE ELEMENT

Yes

INTERIOR COATING

Porcelain

INTERIOR COLOR

Black

LANGUAGE CONVERSION

English/French

LIGHT CONTROL

Oven Light Touch Pad

LIGHT TYPE

Halogen

LOWER OVEN INTERIOR DEPTH

48.26 cm, 19.0 in

LOWER OVEN INTERIOR HEIGHT

45.72 cm, 18.0 in

LOWER OVEN INTERIOR WIDTH

55.88 cm, 22.0 in

LOWER OVEN NUMBER OF OVEN LIGHTS

2

NUMBER OF BAKE ELEMENTS

2

NUMBER OF BROIL ELEMENTS

2

NUMBER OF LOWER OVEN RACKS

3

NUMBER OF LOWER RACK GUIDES

6

NUMBER OF UPPER OVEN RACKS

3

NUMBER OF UPPER RACK GUIDES

6

OVEN COOKING SYSTEM

Convection Both

OVEN RACK 1 TYPE

Standard

OVEN RACK 2 TYPE

Standard

OVEN RACK 3 TYPE

Gliding Roll-Out

POWER ON INDICATOR LIGHT

Yes

SELF-CLEANING OVEN RACKS

No

TEMPERATURE CONVERSION

Yes

UPPER OVEN INTERIOR DEPTH

48.26 cm, 19.0 in

UPPER OVEN INTERIOR HEIGHT

45.72 cm, 18.0 in

UPPER OVEN INTERIOR WIDTH

55.88 cm, 22.0 in

UPPER OVEN NUMBER OF OVEN LIGHTS

2

Appearance

DOOR TYPE

Metal & Glass

FLUSH INSTALLATION APPROVED

Yes

HANDLE COLOR

Stainless Steel

HANDLE MATERIAL

Metal

Details

BAKE ELEMENT POWER

2800W Both

BROILER ELEMENT POWER

4000W Both

CONVECTION ELEMENT POWER

3200 Both

CONVECTION ELEMENT TYPE

True

OVEN CLEANING TYPE

Adjustable Self Cleaning

OVEN RACK 1 TYPE

Standard

OVEN RACK 2 TYPE

Standard

OVEN RACK 3 TYPE

Gliding Roll-Out

Certifications

ADA COMPLIANT

No

PROP 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

UL

UL

Electrical

VOLTS

240

Controls

DISPLAY COLOR

White

ELECTRONIC DISPLAY TYPE

Digital

Exterior

OVEN DOOR

Metal & Glass

OVEN WINDOW SIZE

Extra Large

Configuration

OVEN CONFIGURATION

Double Oven

EndecaProps

PRODUCTOUTLETCATEGORIES

Cooking

Energy

ANNUAL ENERGY USAGE [KWH]

410.0
